IPv6 in OpenStack tenants

Waldur can manage OpenStack tenants that use IPv6, including clouds where every network is IPv6-only. Most of the tenant workflow is unchanged — this page covers the places where IPv6 behaves differently from IPv4.

Creating an IPv6 subnet

  1. Open the OpenStack tenant resource and go to Networking → Subnets.
  2. Click Add.

  3. Choose the Network, give the subnet a Name, and enter the prefix in Internal network mask (CIDR).

    The field accepts either family, for example 192.168.42.0/24 or 2001:db8::/64.

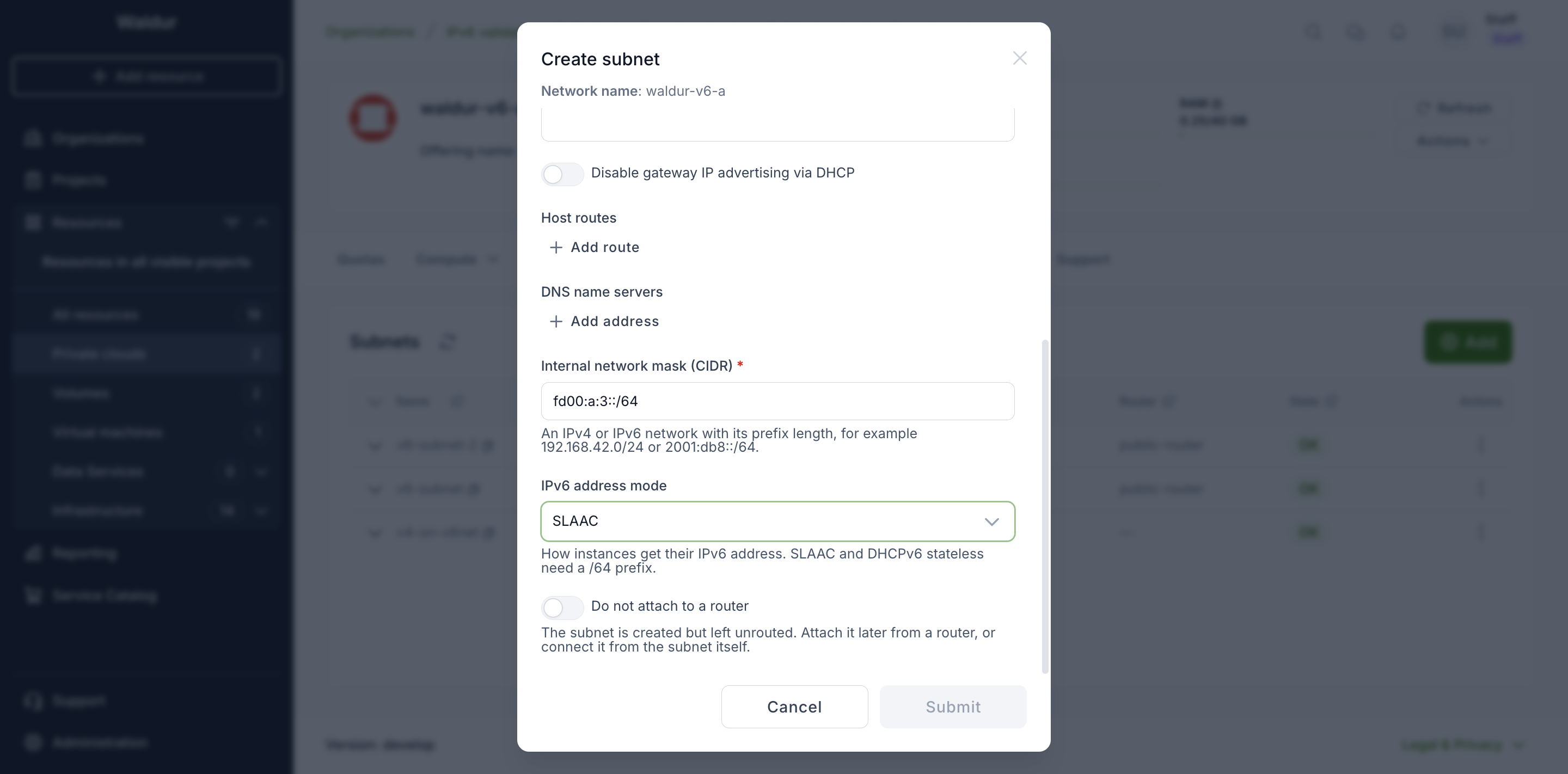

    Create subnet dialog with an IPv6 prefix and the address mode set to SLAAC

  4. As soon as the CIDR is an IPv6 prefix, an IPv6 address mode field appears. It controls how instances on the subnet obtain their address.

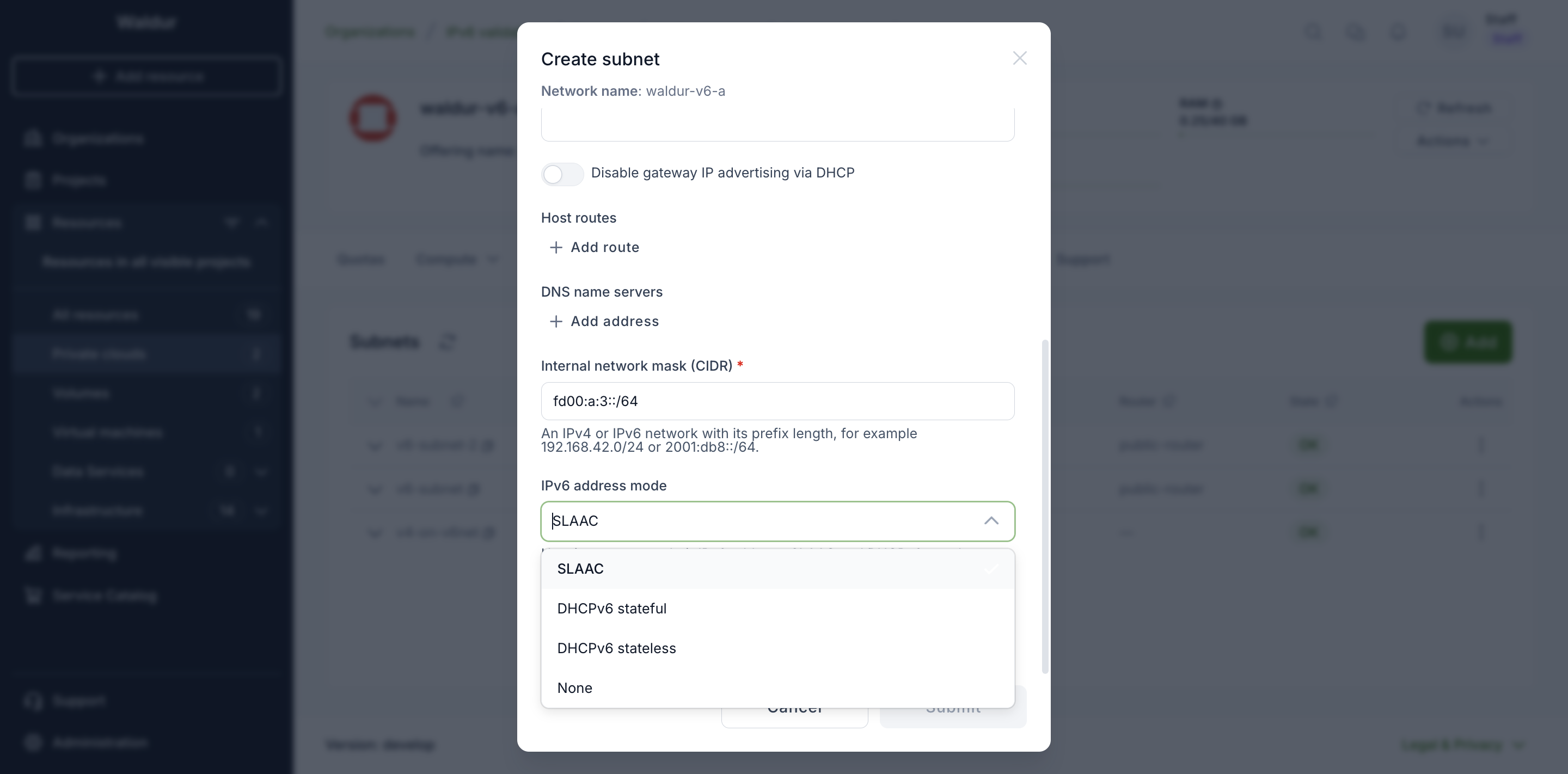

    The four available IPv6 address modes

    Mode How instances get an address
    SLAAC The instance builds its own address from the subnet prefix and its MAC address.
    DHCPv6 stateful A DHCPv6 server hands out the address.
    DHCPv6 stateless The instance builds its own address; DHCPv6 supplies only extra options such as DNS.
    None No automatic addressing — addresses are configured on the instance itself.

    Note

    SLAAC and DHCPv6 stateless require a /64 prefix, because the instance derives the host part of its address from the prefix. The API rejects any other prefix length for those two modes.

  5. Optionally pick a Router to attach the subnet to. Leaving it empty lets Waldur choose one.

  6. Click Submit.

Note

The allocation pool fields shown for IPv4 subnets are not offered for IPv6. A subnet that assigns addresses automatically does not take a fixed range.

Warning

An internal network can hold only one subnet. To add another subnet, create another network first.

Reviewing subnets

The Subnets tab lists each subnet with its prefix, so both families are visible at a glance. A tenant can mix them: the network below carries an IPv6 subnet and an IPv4 one side by side.

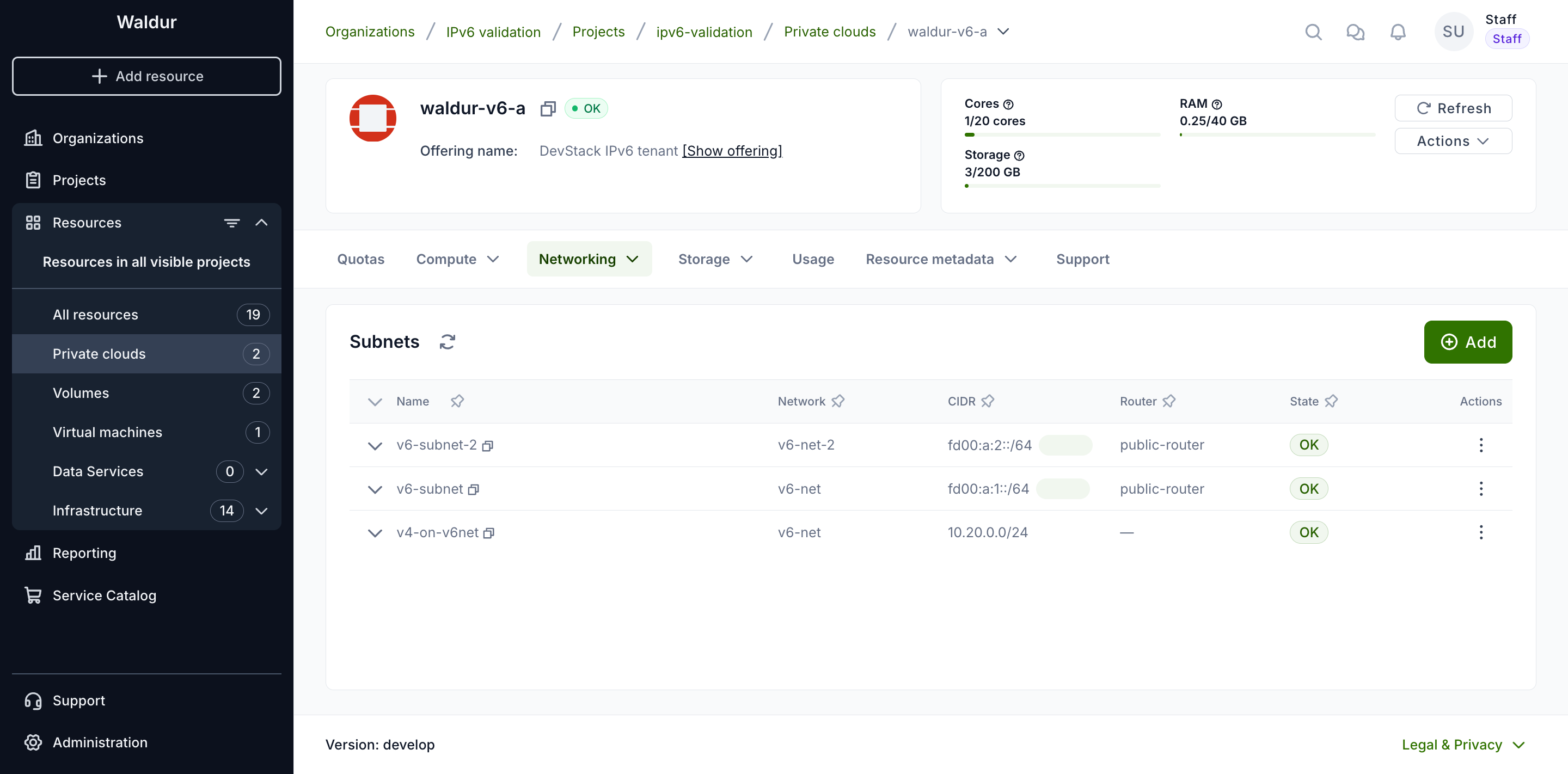

Subnet list showing two IPv6 /64 subnets and one IPv4 subnet

An IPv6 subnet carries its address mode as a badge next to the prefix, so the mode each subnet was created with is visible without opening anything. IPv4 subnets have no badge — the mode does not apply to them.

Expand a row to see the rest of the subnet, including the router advertisement mode alongside the address mode. An IPv4 subnet shows no mode rows at all.

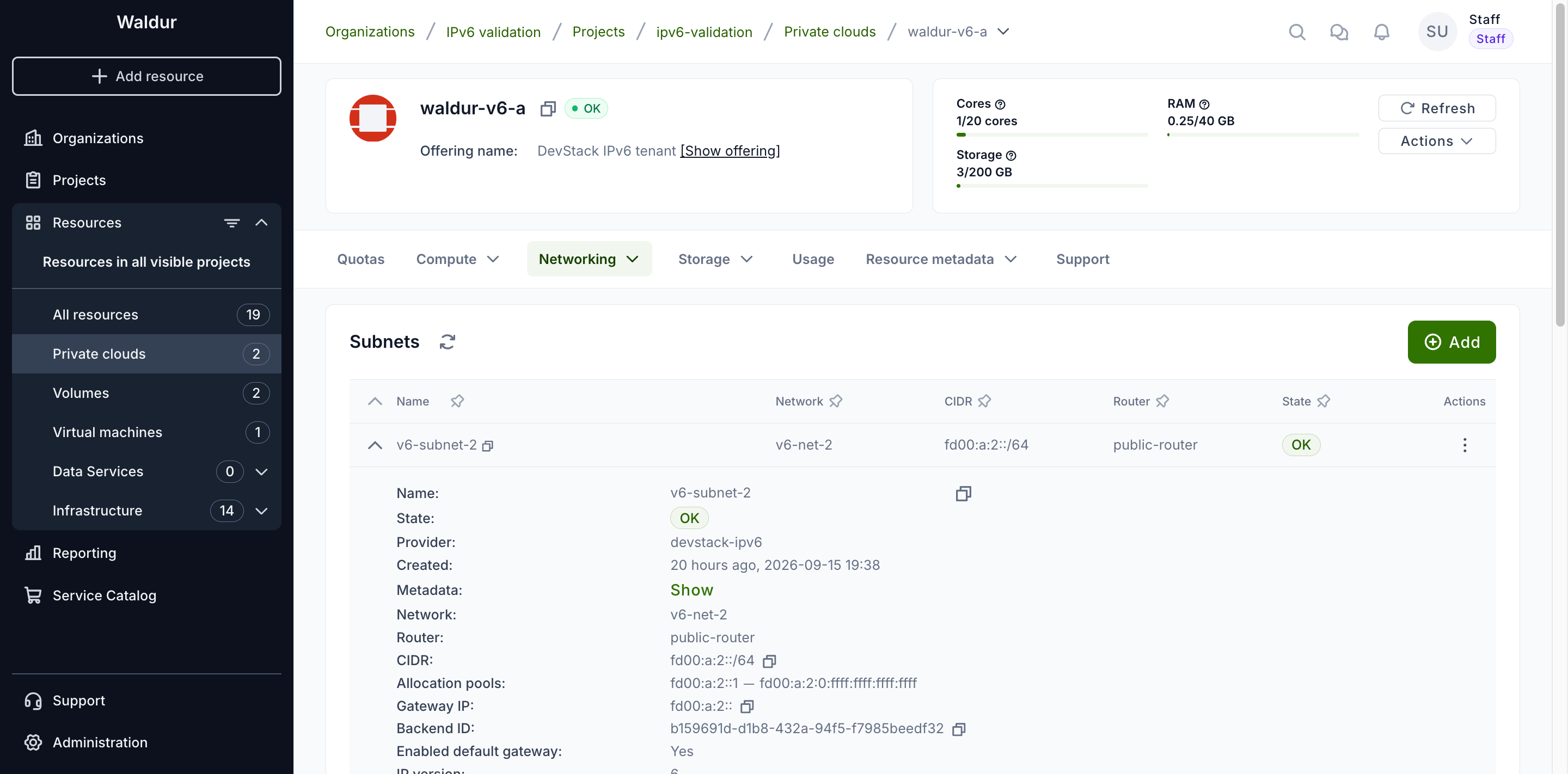

Expanded subnet rows showing SLAAC for the IPv6 subnets and no mode rows for the IPv4 one

Note

Choose the address mode deliberately at creation time. Changing it later means recreating the subnet, because OpenStack treats the address modes as immutable.

Security groups

The security groups created with a new tenant carry rules for both families, so IPv6 traffic is covered by the same defaults as IPv4. You can add your own IPv6 rules — including ICMPv6, which IPv6 relies on far more heavily than IPv4 relies on ICMP.

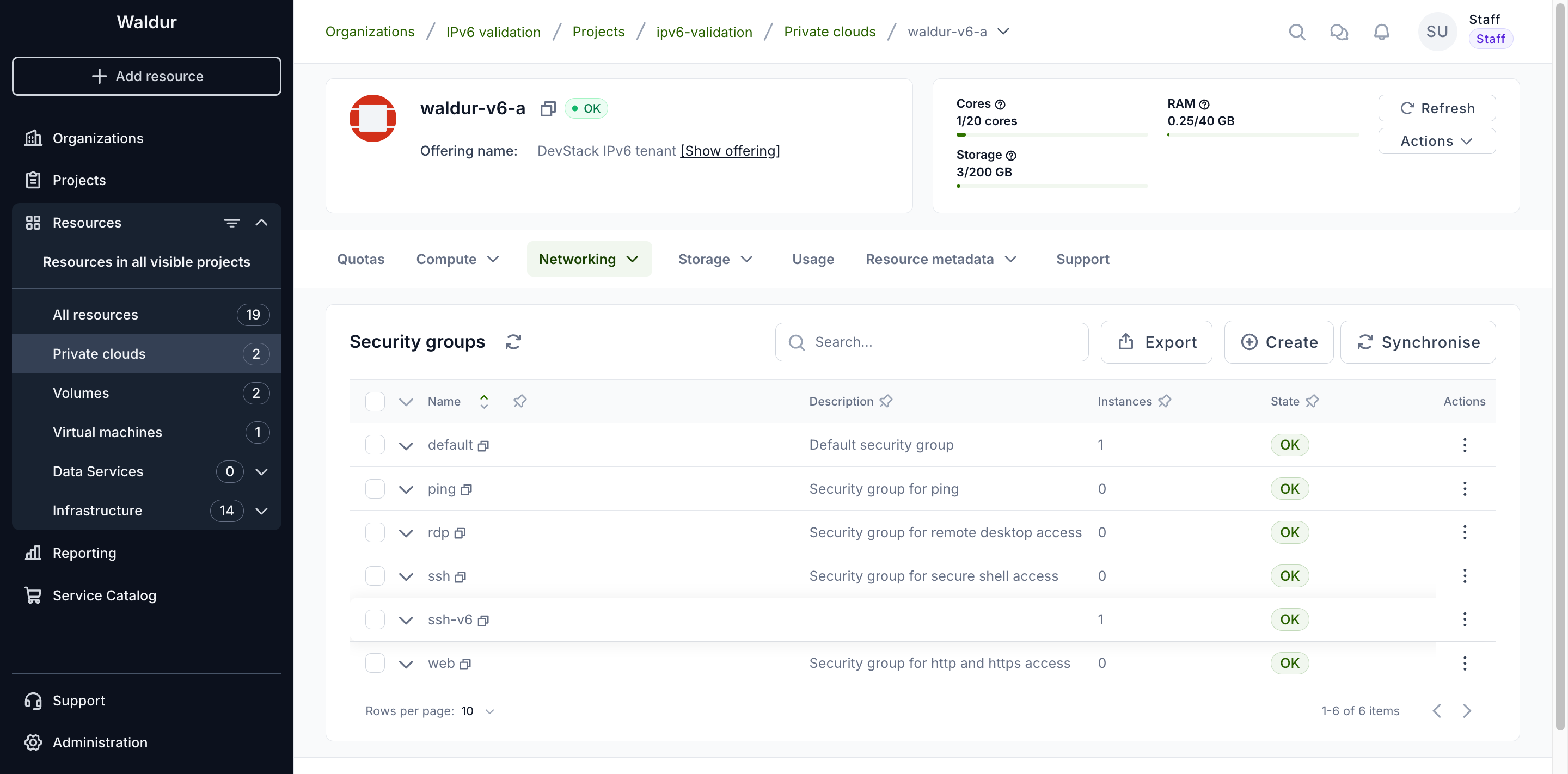

Security groups of an IPv6 tenant

When writing a rule, give the remote prefix in the same family as the rule's ethertype — for example ::/0 for "anywhere" on an IPv6 rule, rather than 0.0.0.0/0.

Virtual machines

Creating a virtual machine

  1. Open the project, click Add resource and choose the virtual machine offering of the OpenStack tenant.
  2. Pick an Image and a Flavor, then set the System volume type and System volume size.

  3. Under Network and security, choose the Subnet. Which subnet you pick decides what the Floating IP field beside it can offer.

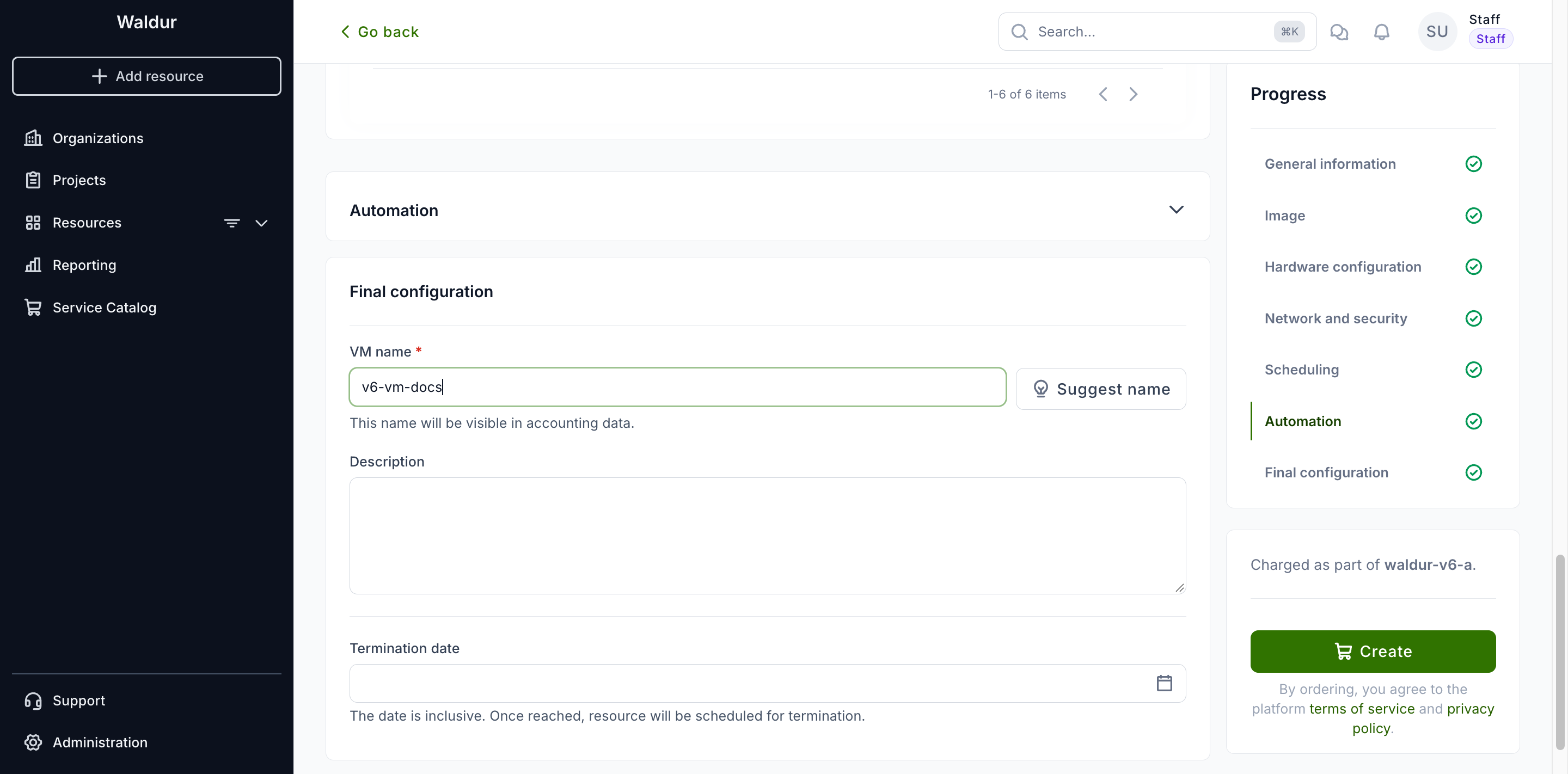

    Order form for a virtual machine on an IPv6 subnet

    Note

    On an IPv6 subnet, Auto-assign floating IP is disabled and says why, leaving Skip floating IP assignment selected. The choice is made per row, so on a tenant holding both families an IPv4 subnet added to the same order can still take a floating IP.

  4. Select the Security groups to join, enter a VM name, and click Create.

Once the order is approved, the instance is provisioned and reaches Active with no floating IP. Internal IPs carries the address it built for itself from the subnet prefix.

A created instance in Active state showing its SLAAC address

Details and actions

An instance on an IPv6 subnet reaches the network through its own address. The Details tab shows it under Internal IPs — with SLAAC the host part is derived from the instance's MAC address, which is why the address ends in a recognisable f816:3eff:fe… pattern.

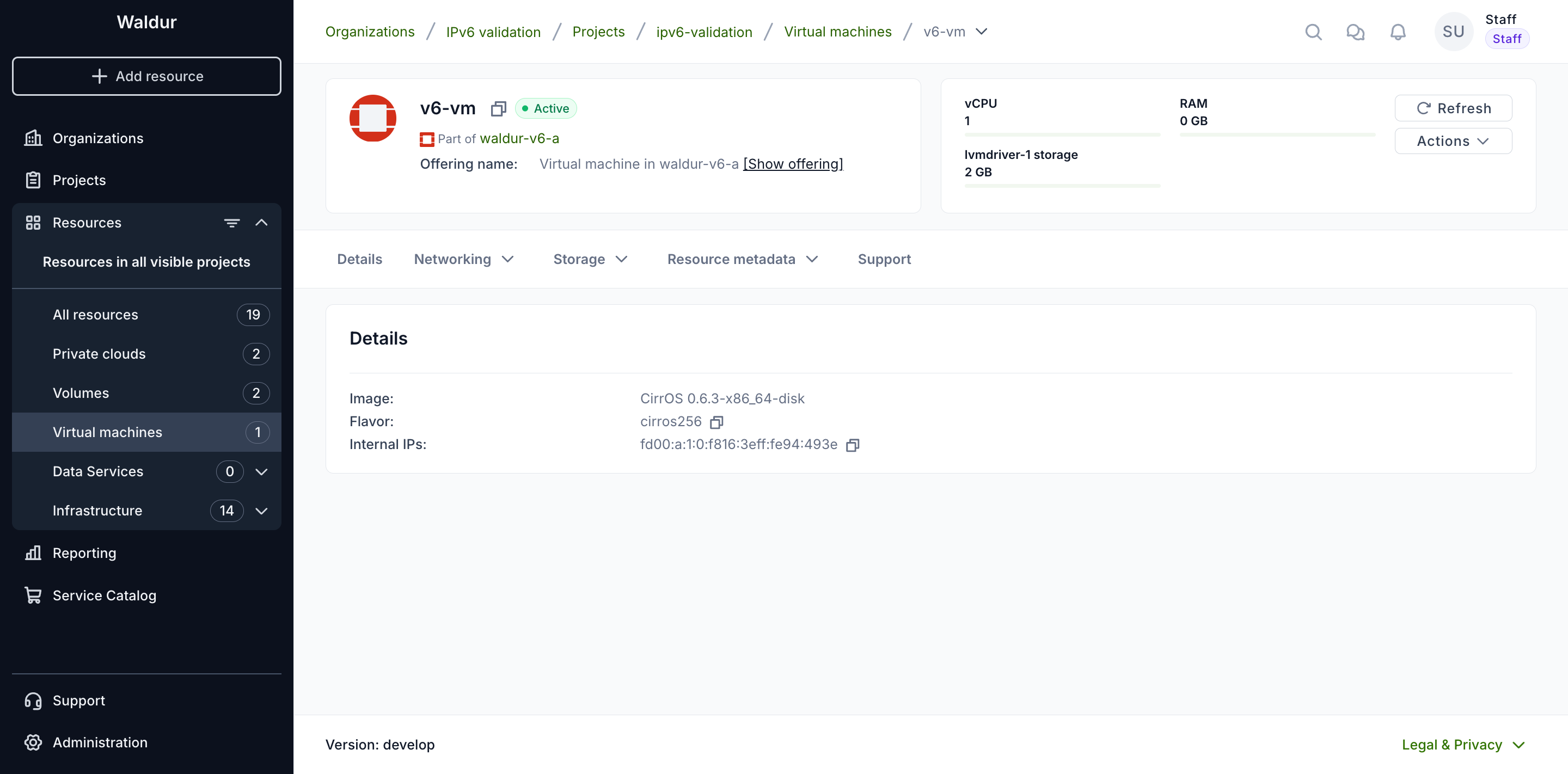

Details tab of an instance on an IPv6 subnet, showing its SLAAC address

Everything else in the Actions menu works as it does on IPv4: start, stop, restart, rescue, edit, change flavor, update security groups, the console, and the provider and billing actions. Nothing is hidden or disabled because the tenant is IPv6 — the usual rules still apply, so Start is unavailable while the instance is running and Change flavor requires it to be stopped.

Two operations deserve a closer look.

Attaching security groups

Update security groups behaves exactly as on IPv4. The only restriction is that a group must belong to the same tenant as the instance; there is no rule about address families, because a single security group can hold rules for both. An instance can therefore carry the tenant's default group alongside a group whose rules are IPv6-only.

Floating IPs

Floating IPs exist only for IPv4 in OpenStack: a floating IP is mapped onto a fixed IPv4 address of a port, so a port with only IPv6 addresses has nothing to map it to.

The Update floating IPs action is still listed for an instance on an IPv6 subnet, but it offers no subnet to choose. It says so instead:

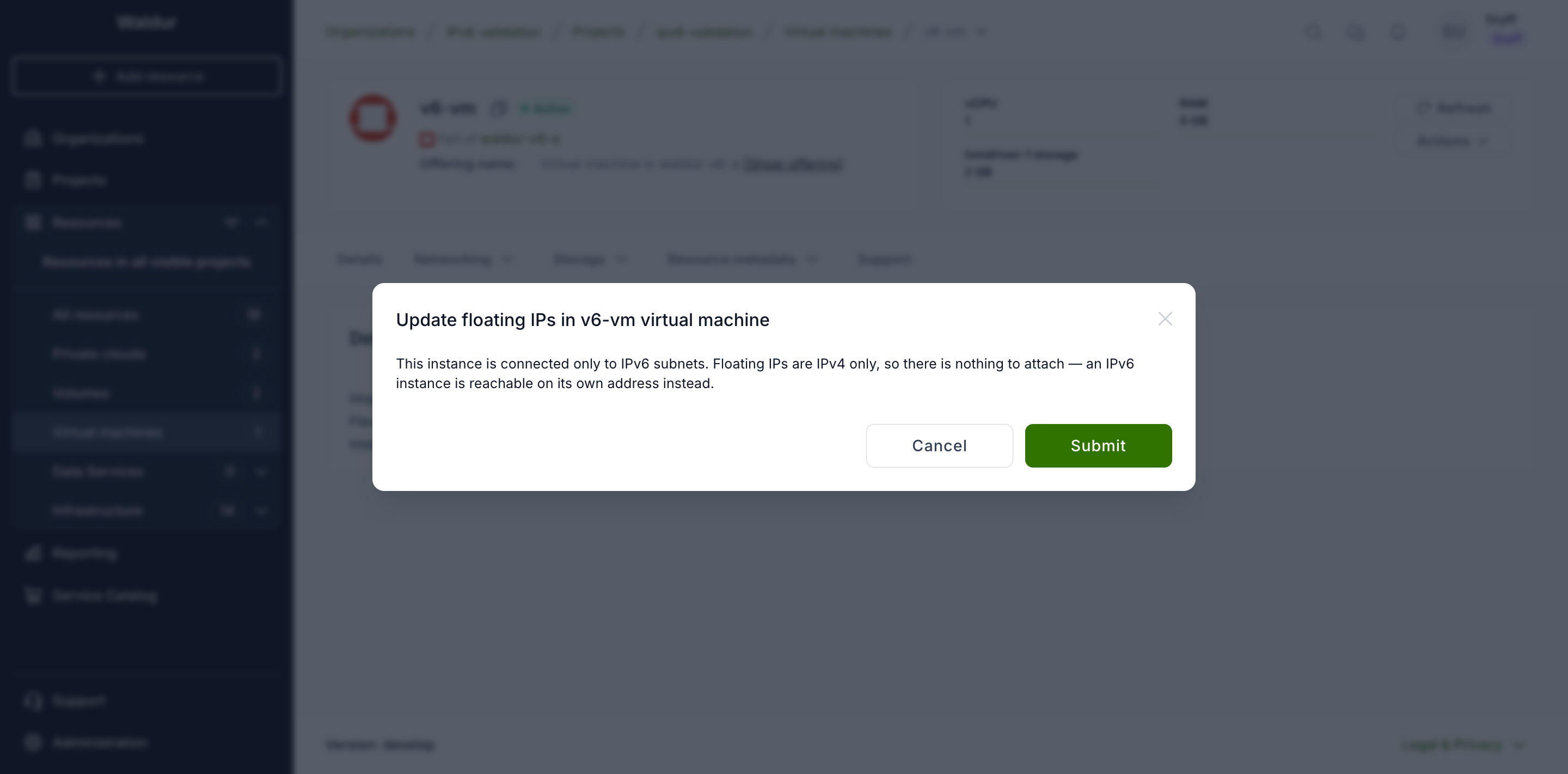

Update floating IPs on an instance connected only to IPv6 subnets

That is the intended outcome, not a failure to work around. An IPv6 instance is reached on the address shown under Internal IPs, and there is nothing to attach in its place.

Note

Internal IPs lists the addresses an instance holds on the tenant's own networks, as opposed to a floating IP. It is a statement about where the address comes from, not about who can reach it. Whether the address is reachable from outside depends on the prefix the subnet was created with: a global prefix routed by the tenant router is reachable directly, while a unique local prefix (fd00::/8, as in the screenshots on this page) stays within the deployment. In both cases security group rules decide what may reach the instance.

If a request does reach the API — from a script, or on a tenant with a mix of subnets — it is refused before anything is created, with the reason spelled out:

External network name has no IPv4 subnet, so no floating IP can be allocated from it. Floating IPs are IPv4 only: IPv6 addresses are routed rather than floating, so reach the instance on its own IPv6 address instead.

Note

An instance that has both an IPv4 and an IPv6 subnet is a normal case: the dialog lists the IPv4 subnets and hides the IPv6 ones, so a floating IP can still be attached to the IPv4 side.

Load balancers

A load balancer's virtual IP can be IPv6. Note that the OVN provider does not support mixing families within one load balancer — the members must be in the same family as the VIP.
