Shared project storage with GLAuth and SSSD

Waldur assigns each offering user a POSIX UID and primary GID and each project (and resource role) a shared GID, then exposes them — together with group membership — through a GLAuth (LDAP) directory. A Linux backend such as an HPC login node consumes that directory with SSSD so that ordinary POSIX tooling (getent, id, file ownership) resolves Waldur identities. This page shows how to connect such a host and use the project GIDs to own shared project folders with the correct group permissions.

How the pieces fit together

Identities flow one way — from Waldur, through GLAuth, to the login node — and POSIX tooling and sshd consume them there:

flowchart LR
  subgraph Waldur
    A["Offering users<br/>(UID/GID, home, shell)"]
    K["User SSH keys"]
    G["Project / role GIDs<br/>+ group membership"]
  end
  A --> R
  K --> R
  G --> R
  R["GLAuth config refresher<br/>(glauth_users_config / glauth_tree API)"] --> L[("GLAuth<br/>LDAP :3893")]
  L -->|LDAP| S["SSSD<br/>on the login node"]
  S --> N["nss_sss<br/>getent / id"]
  S --> SK["sss_ssh_authorizedkeys"]
  SK -->|AuthorizedKeysCommand| D[sshd]
  D --> U((User logs in<br/>with their SSH key))
  N --> F["Shared project folders<br/>owned by the project GID"]

Note that the login name a user types is the GLAuth cn (the generated POSIX login name), and their SSH keys reach sshd as GLAuth's sshPublicKey attribute — both details drive the SSSD settings below.

Connecting an SSSD client to GLAuth

Point SSSD at the GLAuth server as an LDAP identity provider. GLAuth serves users as posixAccount entries named by cn and groups as posixGroup entries named by ou, carrying memberUid, so three attribute-mapping settings differ from the SSSD defaults:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
# /etc/sssd/sssd.conf   (mode 0600, root-owned)
[sssd]
config_file_version = 2
services = nss, pam, ssh     # ssh backs sss_ssh_authorizedkeys (see below)
domains = glauth

[ssh]

[domain/glauth]
id_provider = ldap
auth_provider = ldap
ldap_uri = ldap://glauth.example.org:3893
ldap_search_base = dc=glauth,dc=com
ldap_default_bind_dn = cn=serviceuser,ou=svcaccts,dc=glauth,dc=com
ldap_default_authtok = <service-account-password>

# GLAuth specifics:
ldap_schema = rfc2307        # groups list members via memberUid
ldap_user_name = cn          # users are cn=<user>, no uid attribute
ldap_group_name = ou         # groups are ou=<group>, no cn attribute
ldap_user_ssh_public_key = sshPublicKey   # keys for sss_ssh_authorizedkeys

Use cn, not preferredUsername

The login name must be ldap_user_name = cn. GLAuth cannot filter searches on custom attributes, so ldap_user_name = preferredUsername matches no one — getent returns nothing and key-based SSH login fails. cn already holds the generated login name.

Add sss to the passwd, group and shadow databases in /etc/nsswitch.conf and start SSSD. Users and their full group membership now resolve — id lists a user's project groups, not just their primary group:

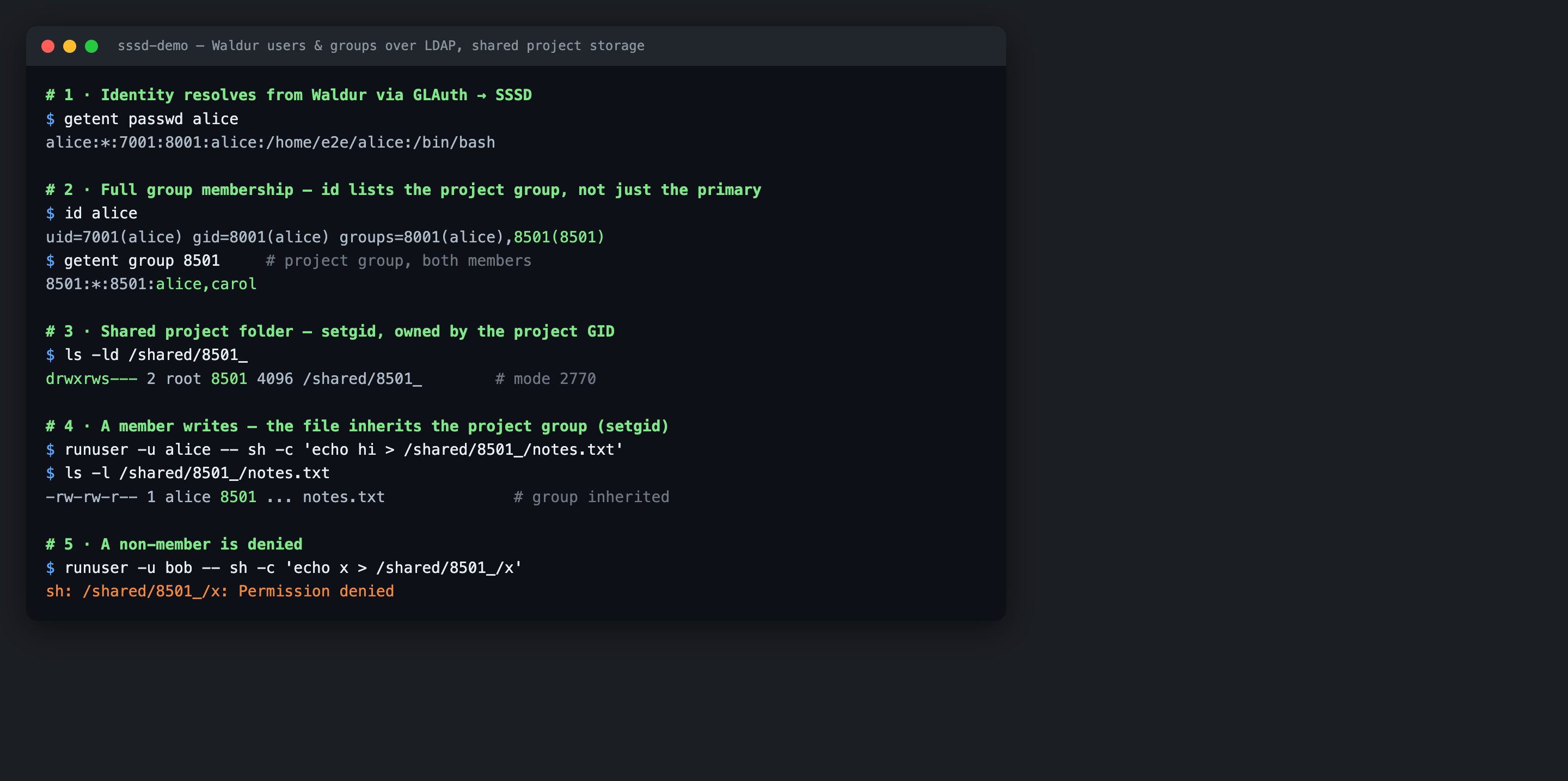

SSSD resolving Waldur users, groups and shared folders

Why rfc2307

GLAuth's own documentation warns that SSSD "does not properly list users belonging to a given group" under rfc2307bis. Use rfc2307 (which resolves membership via memberUid) so that id <user> returns the project groups and group-based file permissions work.

SSH key login

Each Waldur user's SSH public keys are exported as GLAuth's sshPublicKey attribute. With the ssh responder enabled above, sss_ssh_authorizedkeys returns them, so sshd can authorise key-based logins straight from the directory — no per-user authorized_keys file on the node:

1
2
# The keys GLAuth serves for a user — exactly what sshd will authorise:
sss_ssh_authorizedkeys <login-name>

Point sshd at that command with a drop-in under /etc/ssh/sshd_config.d/:

1
2
3
AuthorizedKeysCommand /usr/bin/sss_ssh_authorizedkeys
AuthorizedKeysCommandUser nobody
PubkeyAuthentication yes

Reload sshd. A user can now ssh <login-name>@<node> with the private key matching any SSH key on their Waldur account.

Shared project folders

Because every project has a stable, provider-unique GID, a shared directory owned by that GID — with the setgid bit — becomes a project folder that only its members can write to, and every file created inside inherits the project group:

1
2
3
4
# for a project whose Waldur GID is 8501
mkdir -p /shared/myproject
chgrp 8501 /shared/myproject
chmod 2770 /shared/myproject      # rwxrws--- : group members read/write, setgid

A project member can then write to the folder and their files stay group-owned by the project; a non-member is denied (see the screenshot above). Drive this from the glauth_tree export (the authoritative list of project/role groups and their GIDs) so folders appear automatically as projects are created.

Troubleshooting

When users do not resolve or cannot log in, work outwards from GLAuth. The commands and output below were captured against a live GLAuth + SSSD pair.

1. Is GLAuth reachable and serving accounts? Bind as the service account and list users. A failure here is a GLAuth, bind-DN or password problem — not SSSD:

1
2
3
4
5
6
$ ldapsearch -x -H ldap://glauth.example.org:3893 \
    -D "cn=serviceuser,ou=svcaccts,dc=glauth,dc=com" -w '<password>' \
    -b "dc=glauth,dc=com" "(objectclass=posixAccount)" cn uidNumber
cn: dig_00038
uidNumber: 10028
# numEntries: ...

2. Does a specific user carry the expected attributes, including its key?

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
$ ldapsearch -x -H ldap://glauth.example.org:3893 \
    -D "cn=serviceuser,ou=svcaccts,dc=glauth,dc=com" -w '<password>' \
    -b "dc=glauth,dc=com" "(cn=dig_00038)" \
    cn uidNumber gidNumber homeDirectory loginShell sshPublicKey
cn: dig_00038
uidNumber: 10028
gidNumber: 1028
homeDirectory: /home/dig_00038
loginShell: /bin/bash
sshPublicKey: ssh-ed25519 AAAA...

3. Does SSSD resolve the user and their keys?

1
2
3
4
5
6
7
8
$ getent passwd dig_00038
dig_00038:*:10028:1028:dig_00038:/home/dig_00038:/bin/bash

$ id dig_00038
uid=10028(dig_00038) gid=1028(dig_00038) groups=1028(dig_00038)

$ sss_ssh_authorizedkeys dig_00038
ssh-ed25519 AAAA...

If steps 1–2 succeed but these return nothing, SSSD is misconfigured — most often ldap_user_name is not cn, ldap_schema is rfc2307bis, or the cache is stale.

4. Inspect SSSD directly, then force a fresh lookup after changing config or Waldur data:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
$ sssctl domain-status glauth
Online status: Online
Active servers:
LDAP: glauth.example.org

$ sssctl user-checks dig_00038
pam_acct_mgmt: Success
...
SSSD nss user lookup result:
 - user name: dig_00038
 - user id: 10028

$ sss_cache -E && systemctl restart sssd

Cleaning up orphaned folders

When a project or resource is deleted its group disappears from Waldur and from the directory, but any shared folder it owned remains on disk, owned by a GID nobody can be a member of any more. Reconcile the folders against the current glauth_tree (and getent group) periodically: a folder whose GID is gone from Waldur and no longer resolvable over LDAP is an orphan and can be archived or removed.

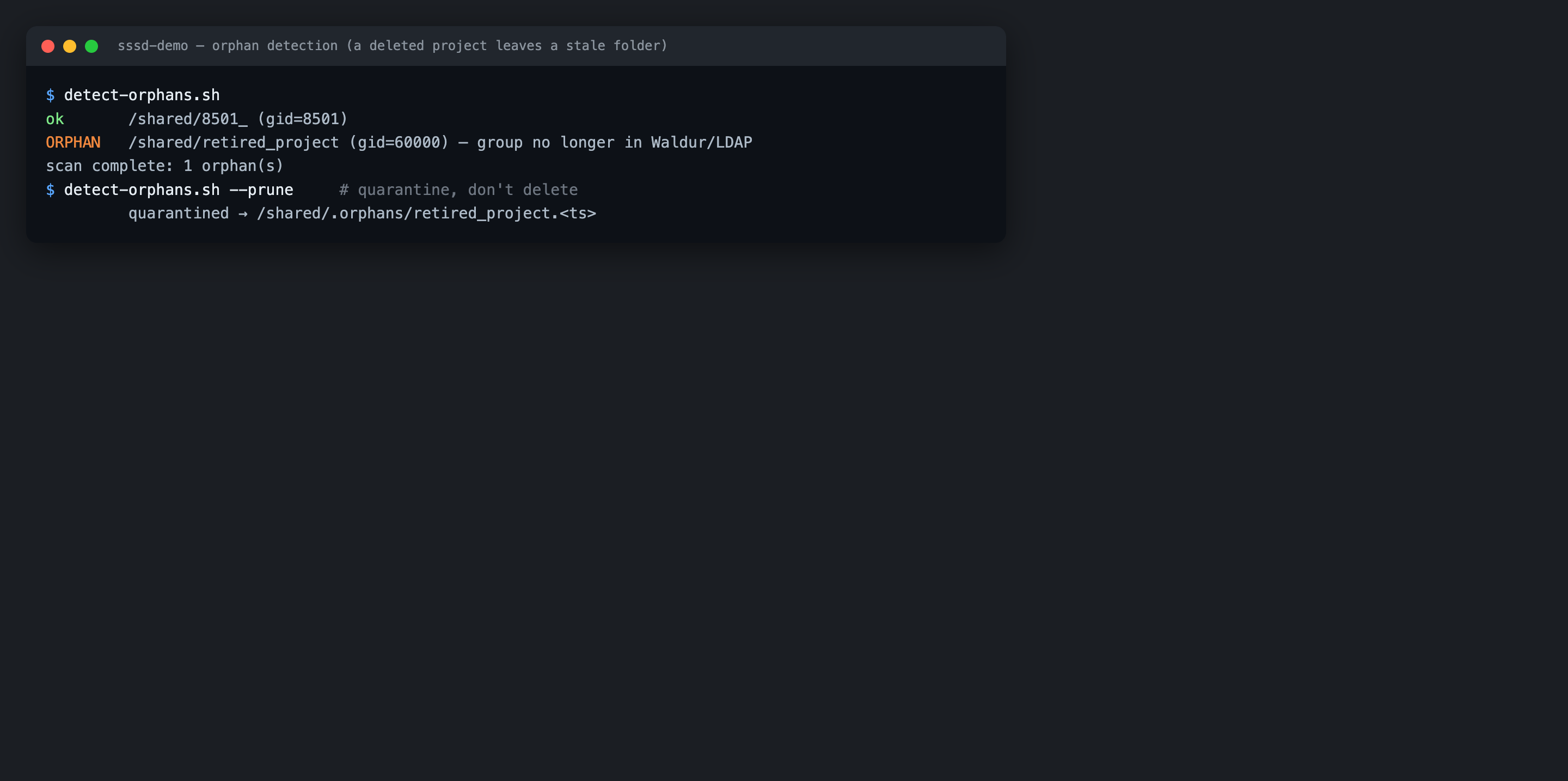

Detecting orphaned shared folders

Warning

Treat a folder as an orphan only when the group is authoritatively gone from Waldur — not merely unresolved. If the directory or API is temporarily unreachable, quarantine (move aside) rather than delete, so a transient outage never destroys live project data.

Reference implementation

A complete, runnable example of this pipeline — a GLAuth server fed by Waldur, an SSSD client container, automatic shared-folder provisioning and an orphan detector — lives in the glauth-sssd-demo directory of the integration-testing repository.
