Router external gateway management

OpenStack VPC routers can be connected to an external network to give the tenant outbound connectivity and act as the entry point for floating IPs. A router with an external gateway acts as the L3 boundary between the tenant's private subnets and the outside world (or another tenant's network, when the gateway is on an RBAC‑shared network).

This page describes how to set, edit, and remove the external gateway on a router from the Waldur UI.

Where to find it

Open the OpenStack tenant resource, then navigate to Networking → Routers. The Routers table has an External gateway column showing the network currently attached to each router as its gateway (or — when none is set).

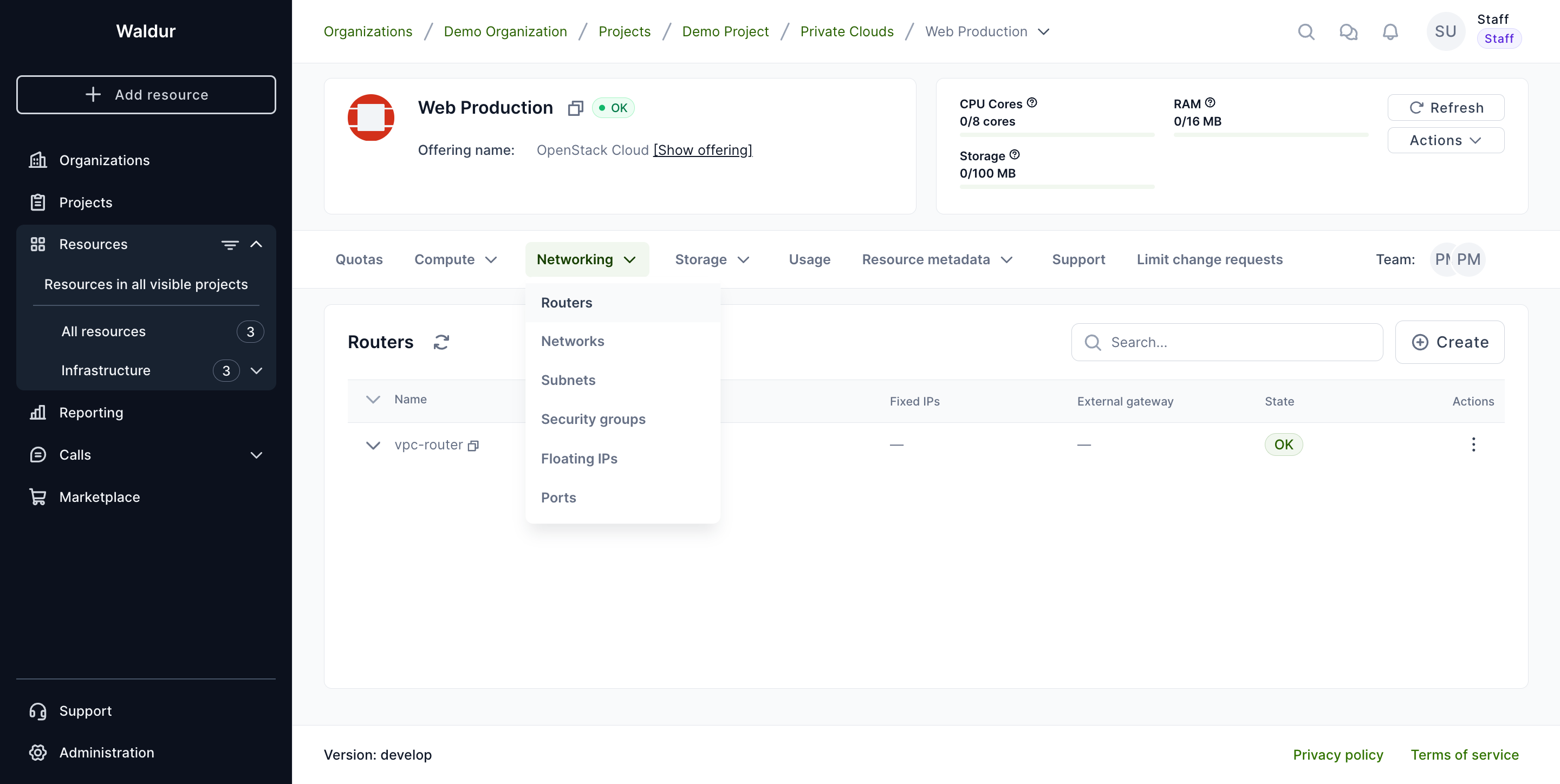

Routers list with the External gateway column

Setting an external gateway

Open the row's action menu (three‑dot icon at the end of the row) and choose Set external gateway.

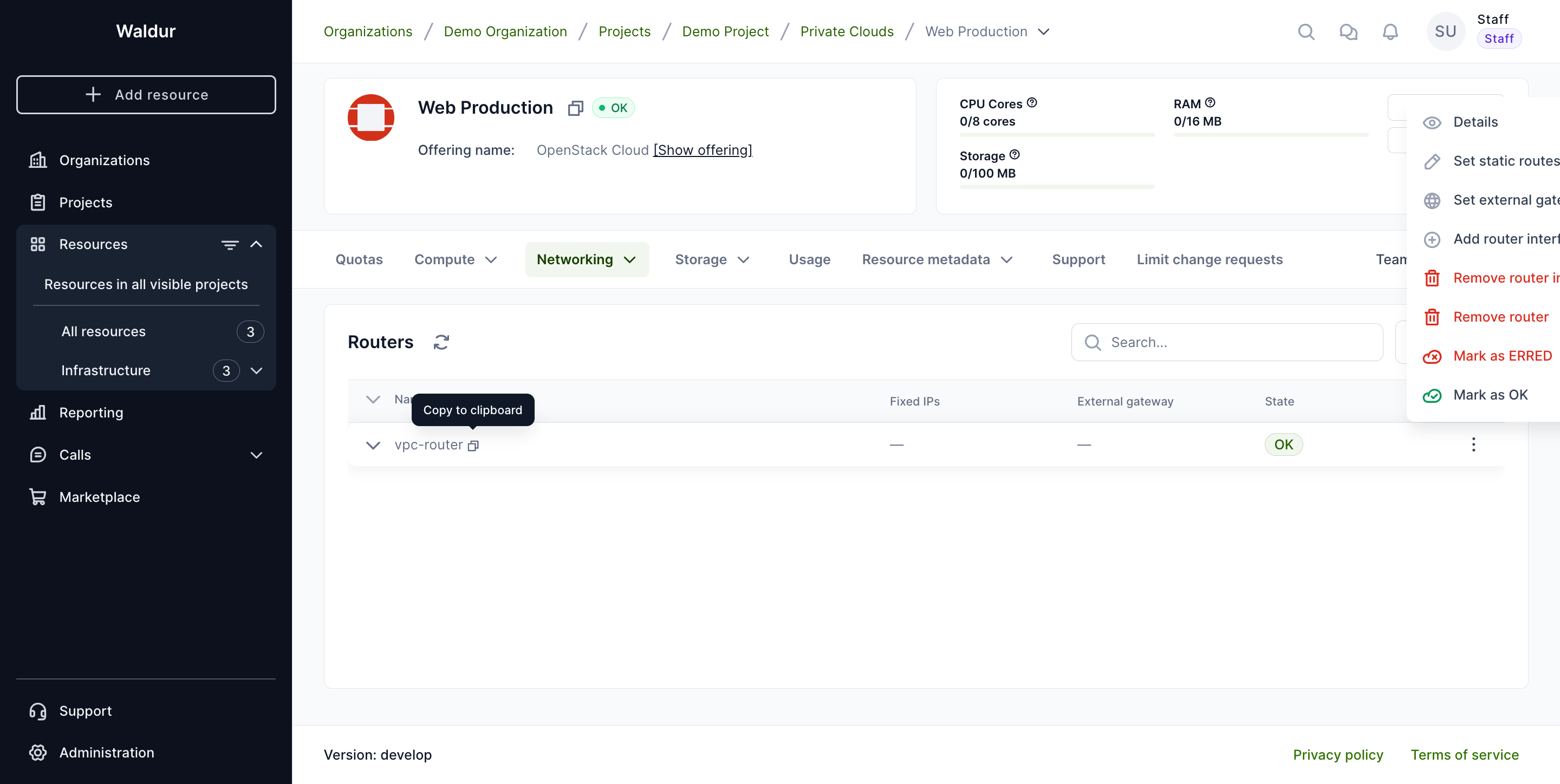

Router row action menu with Set external gateway highlighted

A dialog opens listing the networks that are available to this router's tenant as an external gateway. There are two kinds:

  • Global networks — provider‑owned external networks (typically the carrier‑grade or floating‑IP pool), available to every tenant on the platform.
  • Organization networks — networks owned by another tenant that have been shared to your tenant via an access_as_external RBAC policy. Use these for controlled L3 interconnection between tenants or with an organization's off‑site infrastructure (dark fibre, MPLS, etc.).

Each entry shows the network name, its subnet CIDR(s), and which kind it is.

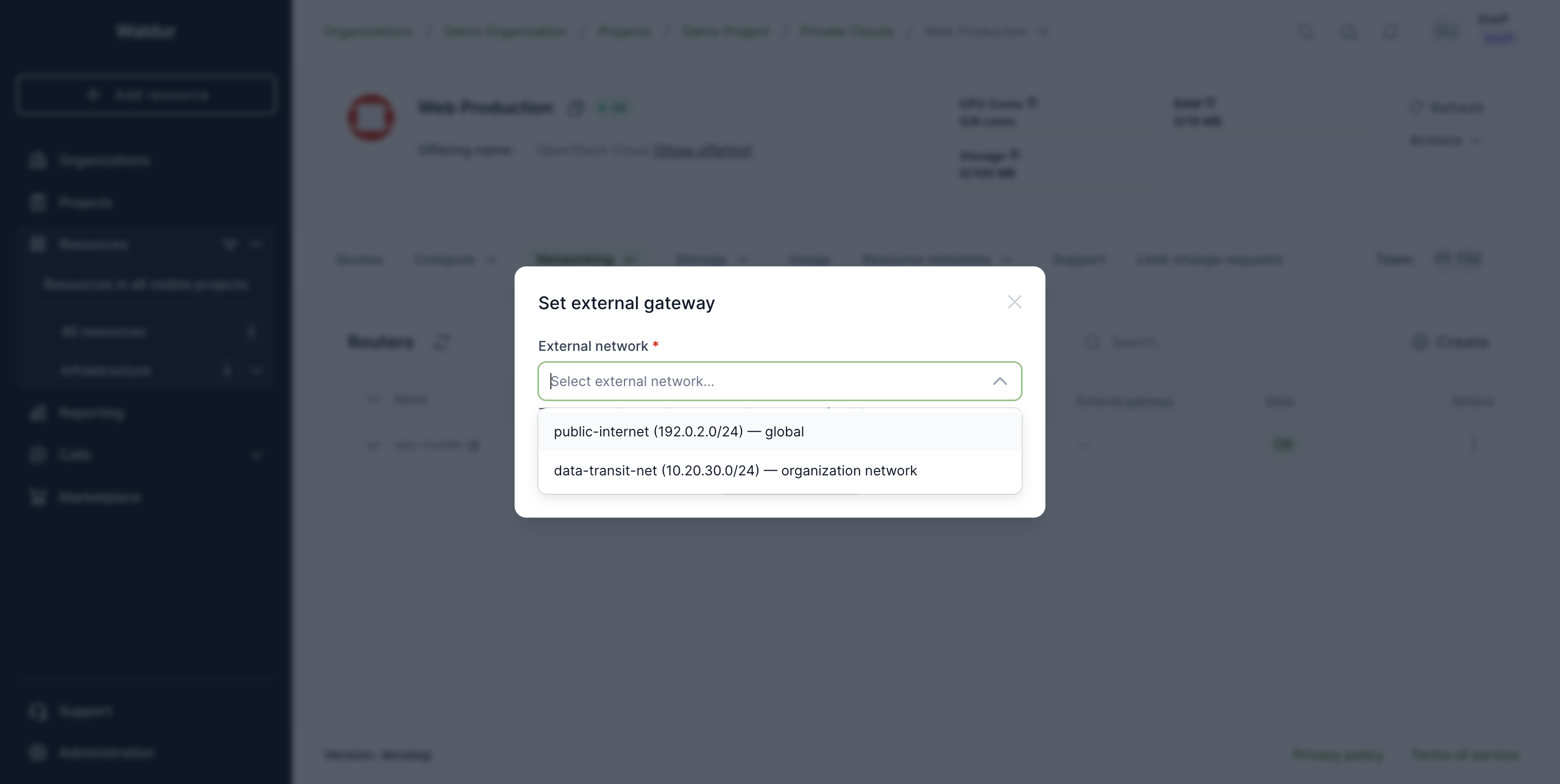

External-network dropdown showing both a global and an organization network

Advanced options (organization networks only)

When you pick an organization network, two extra controls become available that let you fine‑tune the gateway:

  • Disable source NAT (SNAT) — by default the gateway translates source addresses (every outbound packet appears to come from the gateway IP). Disabling SNAT preserves the original source addresses so the gateway can be used as a direct routing hop between subnets. This is the typical configuration for inter‑tenant or site‑to‑site routing.
  • Fixed IPs — pin one or more specific IP addresses on the gateway port, optionally tied to a particular subnet on the chosen network. Useful when the IP of the gateway must be predictable (peers' static routes, documentation, monitoring).

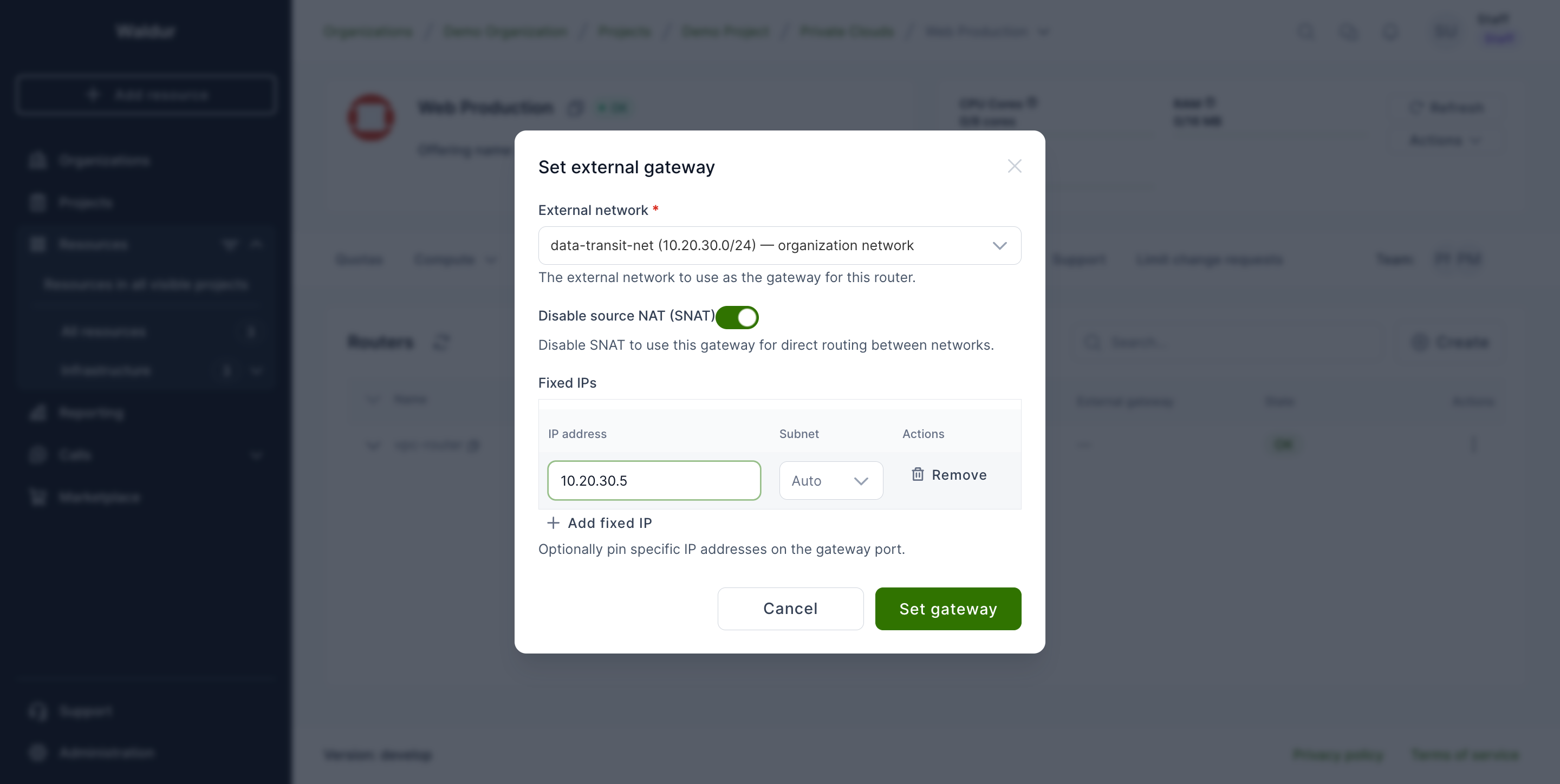

Dialog showing the advanced controls revealed for an organization network

Note

The advanced controls are deliberately not offered for global networks in the UI: pinning a fixed IP or disabling SNAT on a provider‑level network has system‑wide effects and is reserved for service‑provider operators. Choose an organization network if you need this level of control.

Click Set gateway to submit. The operation is scheduled and the router moves through Updating before returning to OK with the new gateway in place.

Where the result appears

Once the gateway is set, it shows up in two places:

  • The External gateway column in the Routers list — the network's name.
  • The expanded router summary under the row, with extra detail: the gateway network, the SNAT state, and any pinned fixed IPs.

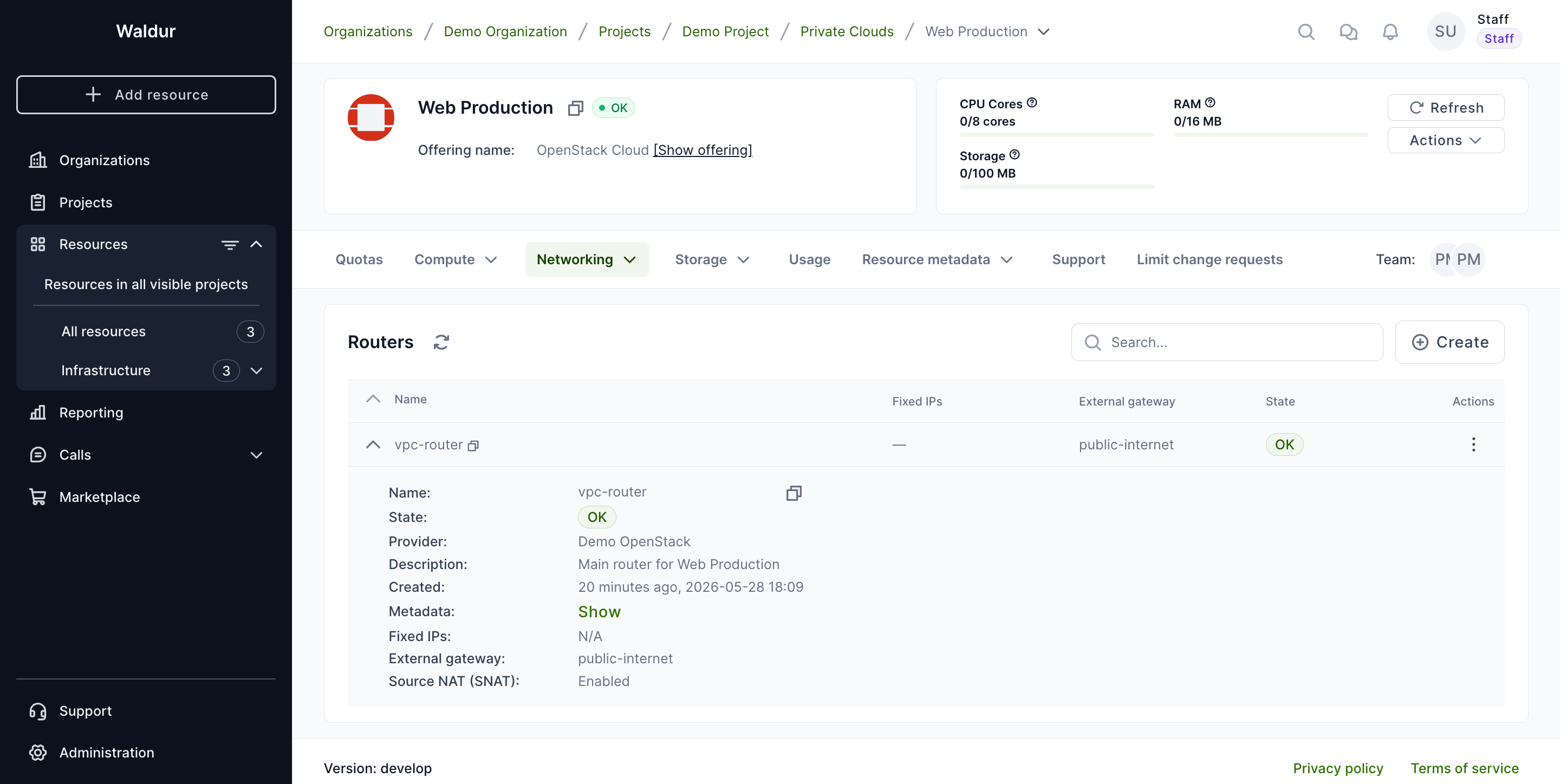

Expanded router row summary showing External gateway and Source NAT status

The action menu also changes once a gateway is present: Set external gateway becomes Edit external gateway, and a Remove external gateway entry appears.

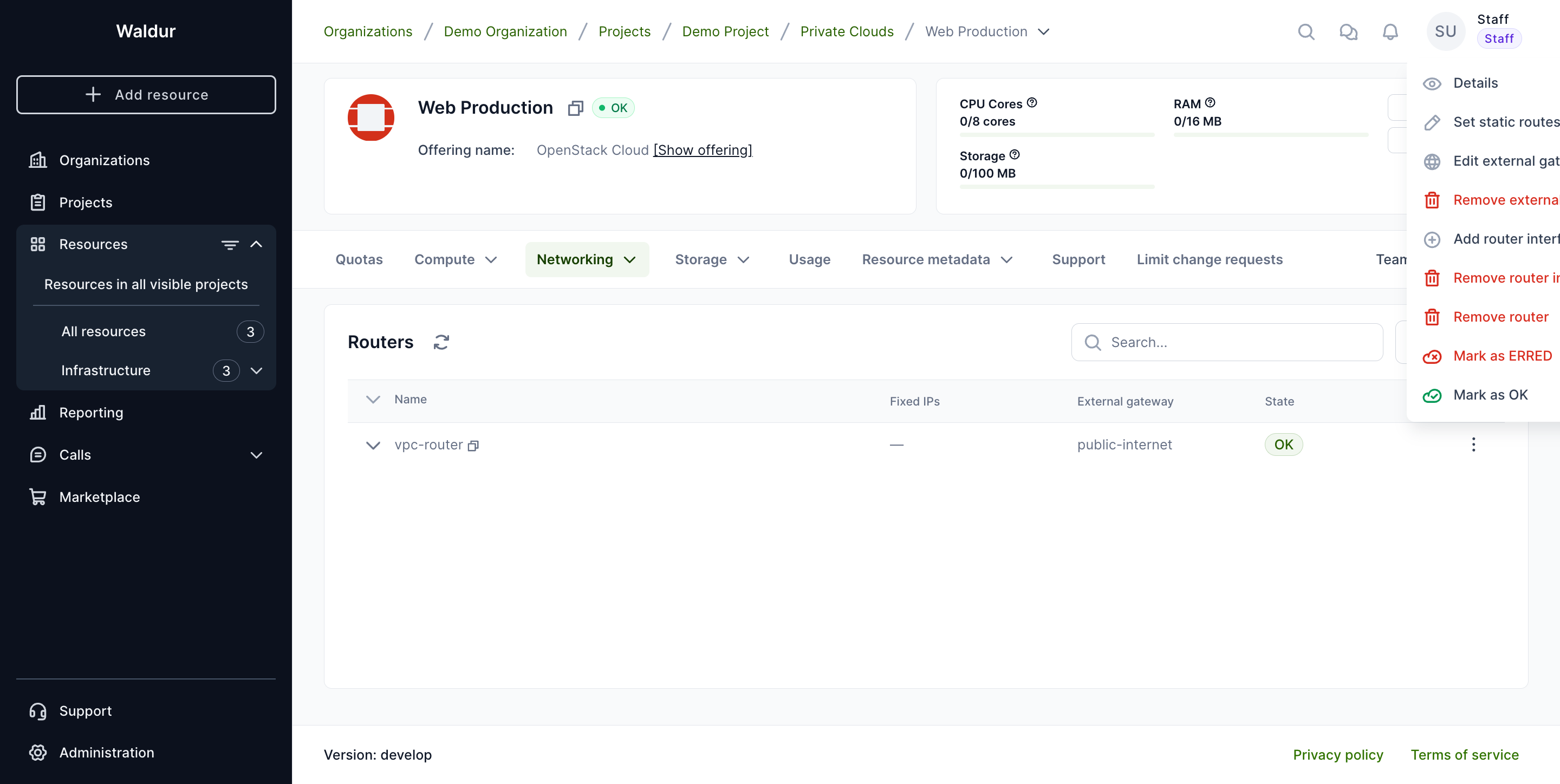

Action menu when a gateway is set, with Edit and Remove entries

Removing the external gateway

Choose Remove external gateway from the row's action menu and confirm.

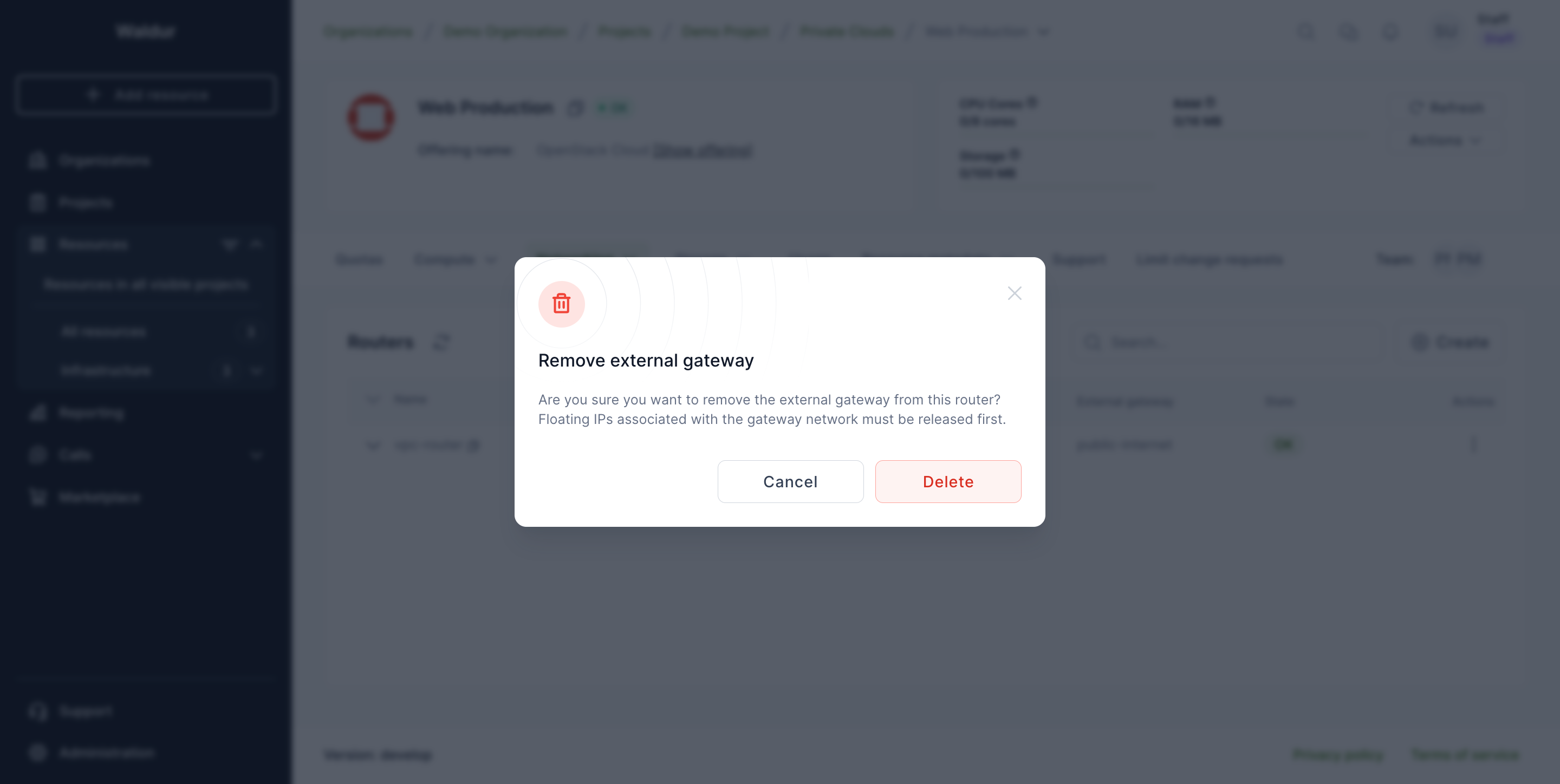

Remove external gateway confirmation dialog

Warning

A gateway cannot be removed while floating IPs are still allocated on the gateway network. Release any floating IPs first, then remove the gateway. Waldur will report an error rather than silently dropping in‑use floating IPs.

Who can do what

The basic operation — set or remove the gateway, choose which network to use — is available to anyone with router management permission on the project (project administrator, project manager, organization owner, staff).

The advanced options (disabling SNAT or pinning fixed IPs) require elevated access, evaluated per‑network:

Network source Who can set advanced options
Global external network Service provider (or staff)
Organization (RBAC‑shared) network An administrator or manager on the project that owns the source network (or staff)

If you don't have the required permission for the advanced controls, the basic gateway action still works — your request will simply be rejected if you include unauthorised advanced fields.
