OpenNebula Keycloak SAML Integration Setup Guide

This guide covers setting up the OpenNebula site-agent plugin with Keycloak SAML integration for VDC user management. When enabled, the plugin automatically creates Keycloak groups and OpenNebula SAML-mapped groups for each VDC, allowing users to log in to Sunstone via SSO.

Architecture

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Waldur                  Site Agent              OpenNebula          Keycloak
  │                        │                       │                   │
  │ create VDC order       │                       │                   │
  ├───────────────────────>│                       │                   │
  │                        │ create VDC + group    │                   │
  │                        ├──────────────────────>│                   │
  │                        │                       │                   │
  │                        │ create KC groups      │                   │
  │                        ├──────────────────────────────────────────>│
  │                        │ vdc_{slug}/{admin,user,cloud}            │
  │                        │                       │                   │
  │                        │ create ONE groups     │                   │
  │                        │ with SAML_GROUP +     │                   │
  │                        │ FIREEDGE template     │                   │
  │                        ├──────────────────────>│                   │
  │                        │                       │                   │
  │                        │ write mapping file    │                   │
  │                        ├──────────────────────>│                   │
  │                        │ keycloak_groups.yaml  │                   │
  │                        │                       │                   │
  │ add user to project    │                       │                   │
  ├───────────────────────>│                       │                   │
  │                        │ add user to KC group  │                   │
  │                        ├──────────────────────────────────────────>│
  │                        │                       │                   │
  │                        │          User logs in via SAML            │
  │                        │          ┌────────────┼──────────────────>│
  │                        │          │  SAML assertion (groups)       │
  │                        │          │<───────────┼──────────────────┤│
  │                        │          │  map group │→ ONE group       │
  │                        │          │  via keycloak_groups.yaml     │
  │                        │          └────────────┘                   │

Prerequisites

  1. OpenNebula 6.8+ with FireEdge and SAML auth driver enabled
  2. Keycloak (any recent version) accessible from both the site-agent and the OpenNebula frontend
  3. waldur-site-agent with the opennebula and keycloak-client plugins installed

Step 1: Configure Keycloak

1.1 Create a Realm

Create a Keycloak realm for OpenNebula (e.g., opennebula). This realm will hold all users and VDC groups.

1.2 Create a SAML Client

In the realm, create a SAML client:

Setting Value
Client ID opennebula-sp
Client Protocol saml
Valid Redirect URIs https://<sunstone-host>/fireedge/api/auth/acs
Name ID Format username

1.3 Configure Group Membership Mapper

Add a SAML protocol mapper to include group membership in the assertion:

Setting Value
Mapper Type Group list
Name member
SAML Attribute Name member
Full group path ON
Single Group Attribute ON

1.4 Create Test Users

Create users in the opennebula realm (e.g., testuser1, admin1). Set passwords for each.

1.5 Create an Admin Service Account

The site-agent needs admin access to the Keycloak API. Use the built-in admin user in the master realm, or create a dedicated service account with group management permissions.

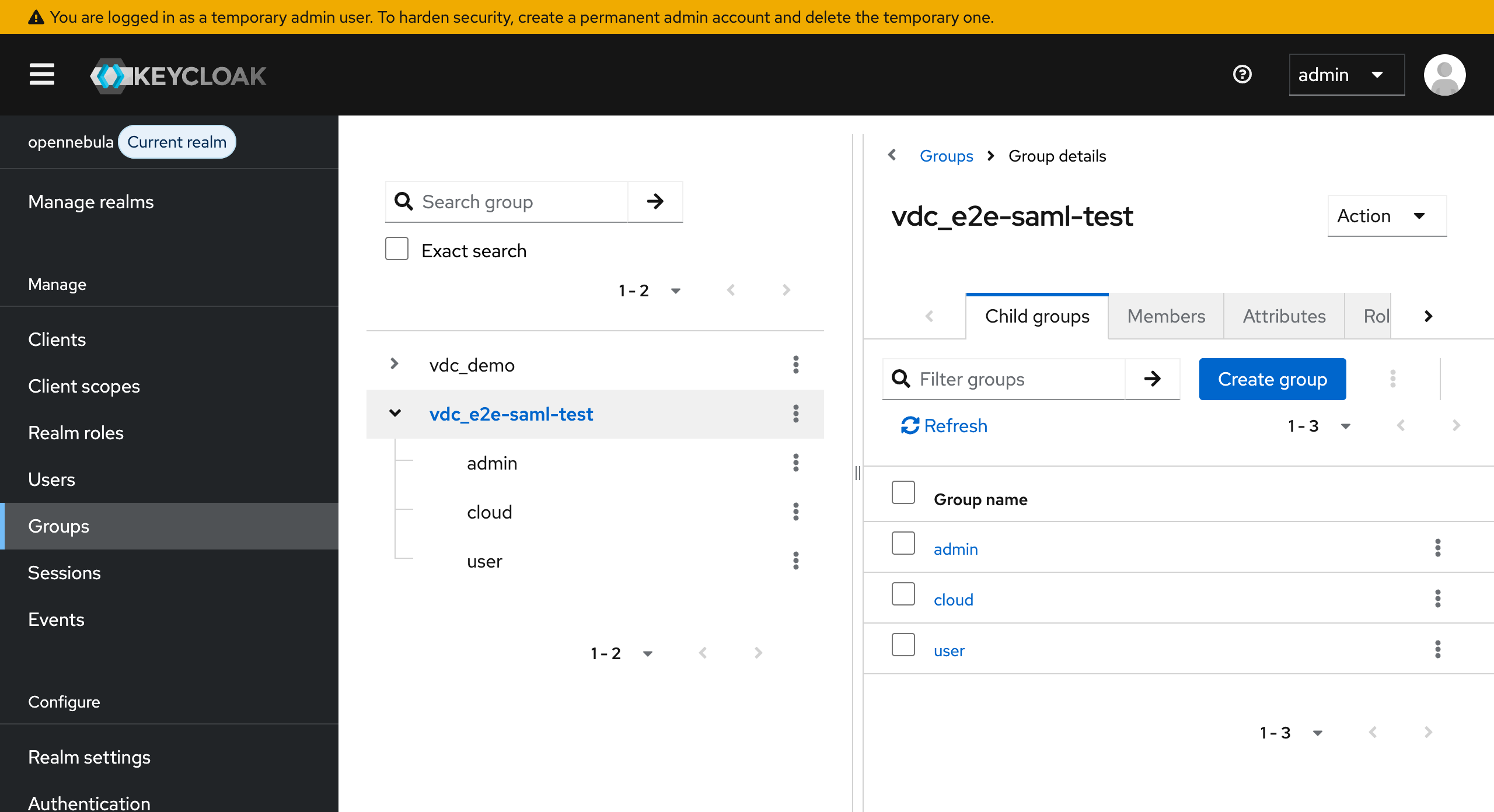

Keycloak Groups Keycloak admin console showing VDC groups created by the site-agent

Step 2: Configure OpenNebula SAML Auth Driver

2.1 Edit /etc/one/auth/saml_auth.conf

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
:sp_entity_id: 'opennebula-sp'
:acs_url: 'https://<sunstone-host>/fireedge/api/auth/acs'
:identity_providers:
  :keycloak:
    :issuer: 'https://<keycloak-host>/keycloak/realms/opennebula'
    :idp_cert: '<paste IDP signing certificate here>'
    :user_field: 'NameID'
    :group_field: 'member'
    :mapping_generate: false
    :mapping_key: 'SAML_GROUP'
    :mapping_mode: 'keycloak'
    :mapping_timeout: 300
    :mapping_filename: 'keycloak_groups.yaml'
    :mapping_default: 1

Key settings: - mapping_generate: false — the site-agent manages the mapping file, not OpenNebula - mapping_key: 'SAML_GROUP' — matches the template attribute set on ONE groups - mapping_mode: 'keycloak' — uses Keycloak group paths for matching - mapping_filename — must match saml_mapping_file in the agent config

2.2 Get the IDP Certificate

Export the signing certificate from Keycloak: - Realm Settings > Keys > RS256 > Certificate

Or fetch from the SAML metadata endpoint:

1
https://<keycloak-host>/keycloak/realms/opennebula/protocol/saml/descriptor

Step 3: Configure the Site Agent

3.1 Agent Configuration

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
offerings:
  - name: "opennebula-vdc"
    uuid: "<offering-uuid>"
    backend_type: "opennebula"

    backend:
      api_url: "http://<opennebula-host>:2633/RPC2"
      credentials: "oneadmin:<password>"
      zone_id: 0
      cluster_ids: [0, 100]
      resource_type: "vdc"

      # Keycloak SAML integration
      keycloak_enabled: true
      keycloak:
        keycloak_url: "https://<keycloak-host>/keycloak/"
        keycloak_realm: "opennebula"
        keycloak_user_realm: "master"
        client_id: "admin-cli"
        keycloak_username: "admin"
        keycloak_password: "<admin-password>"
        keycloak_ssl_verify: true

      # Must match mapping_filename in saml_auth.conf
      saml_mapping_file: "/var/lib/one/keycloak_groups.yaml"

      # Default role when adding users without explicit role
      default_user_role: "user"

    components:
      cpu:
        type: "cpu"
        name: "CPU Cores"
        measured_unit: "cores"
        billing_type: "limit"
        unit_factor: 1
      ram:
        type: "ram"
        name: "RAM"
        measured_unit: "MB"
        billing_type: "limit"
        unit_factor: 1
      storage:
        type: "storage"
        name: "Storage"
        measured_unit: "MB"
        billing_type: "limit"
        unit_factor: 1

See examples/opennebula-config-saml.yaml for a complete example.

3.2 VDC Roles (Optional)

The default roles are admin, user, and cloud. Each role creates: - A Keycloak child group under vdc_{slug}/{role_name} - An OpenNebula group {slug}-{suffix} with SAML_GROUP and FIREEDGE template attributes

Override defaults in backend_settings.vdc_roles:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
vdc_roles:
  - name: "admin"
    one_group_suffix: "admins"
    default_view: "groupadmin"
    views: "groupadmin,user,cloud"
    group_admin: true
  - name: "user"
    one_group_suffix: "users"
    default_view: "user"
    views: "user"
  - name: "cloud"
    one_group_suffix: "cloud"
    default_view: "cloud"
    views: "cloud"

Step 4: Create the OpenNebula VDC Offering in Waldur

4.1 Register the Organization as a Service Provider

Navigate to Organizations and select the organization that will provide the OpenNebula VDC service. Go to the Edit tab and click Service provider in the sidebar.

If the organization is not yet registered as a service provider, click Enable service provider profile.

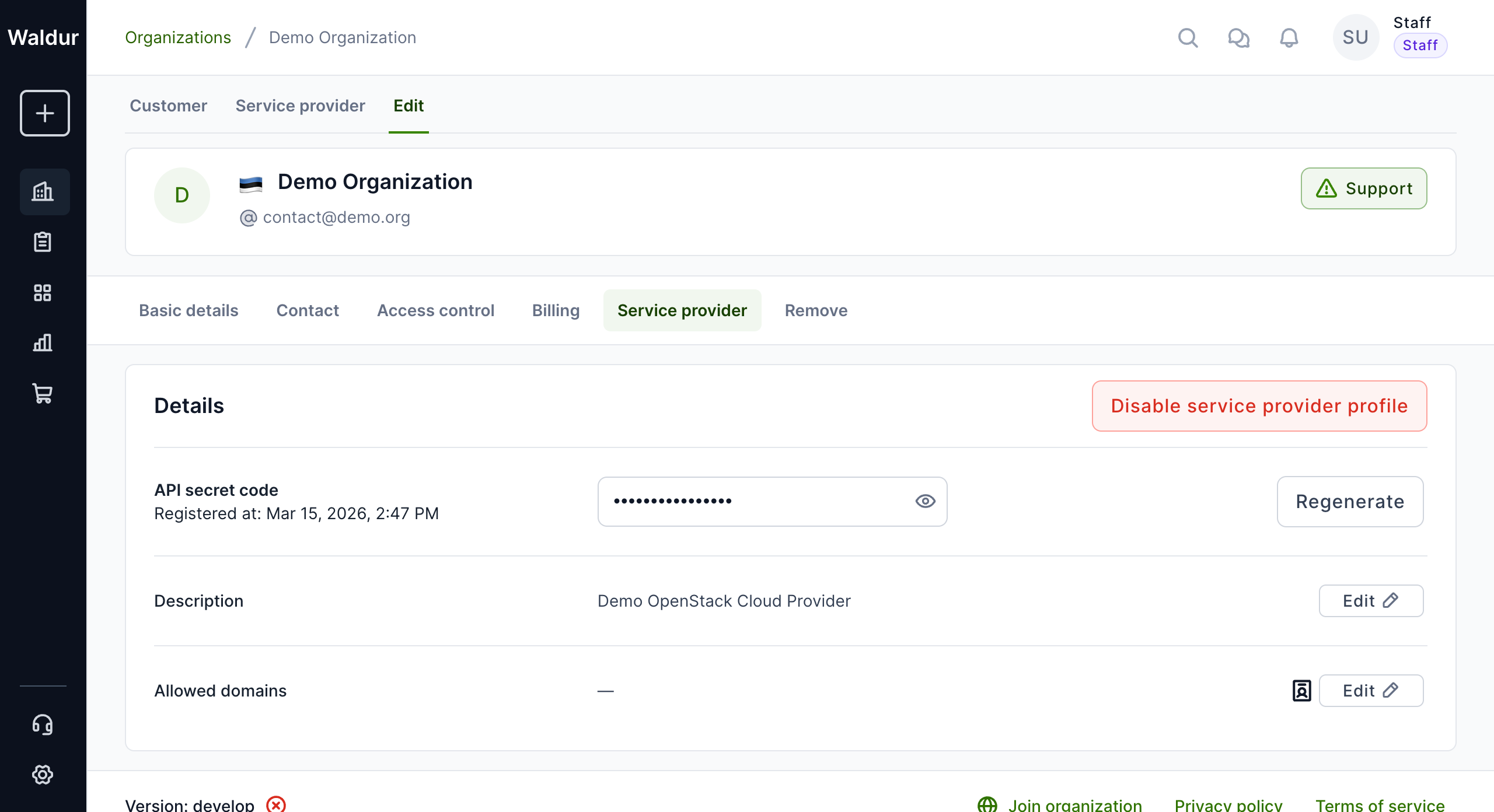

Service Provider Tab Organization settings showing the Service provider configuration

4.2 Create the VDC Offering

Switch to the Service provider tab at the top, then navigate to Marketplace > Offerings. Click Add to create a new offering.

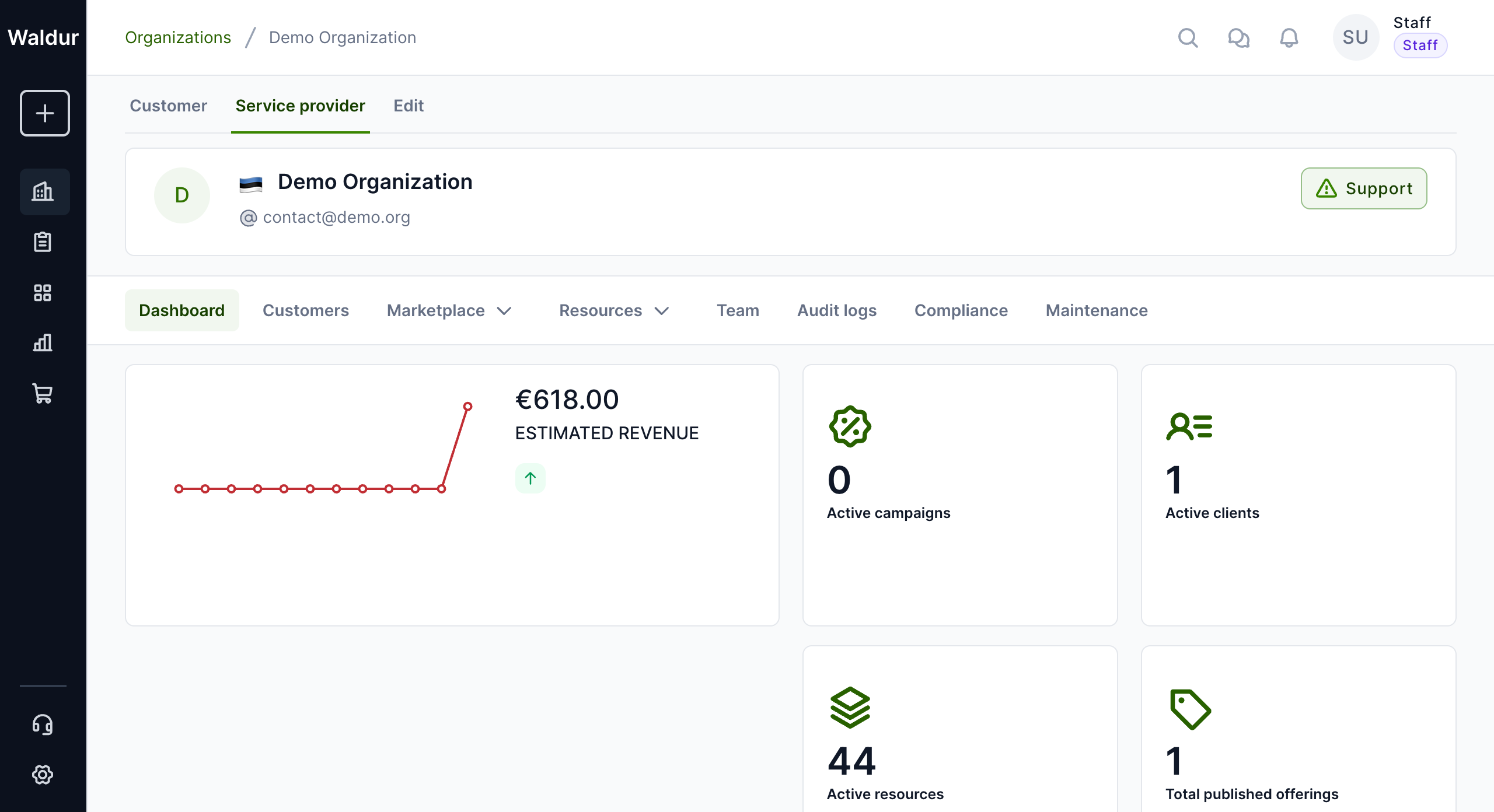

Provider Dashboard Service provider dashboard showing active offerings and resources

In the creation dialog, fill in:

Field Value
Name OpenNebula VDC
Category Private Clouds (or create a new VDC-specific category)
Type Waldur site agent

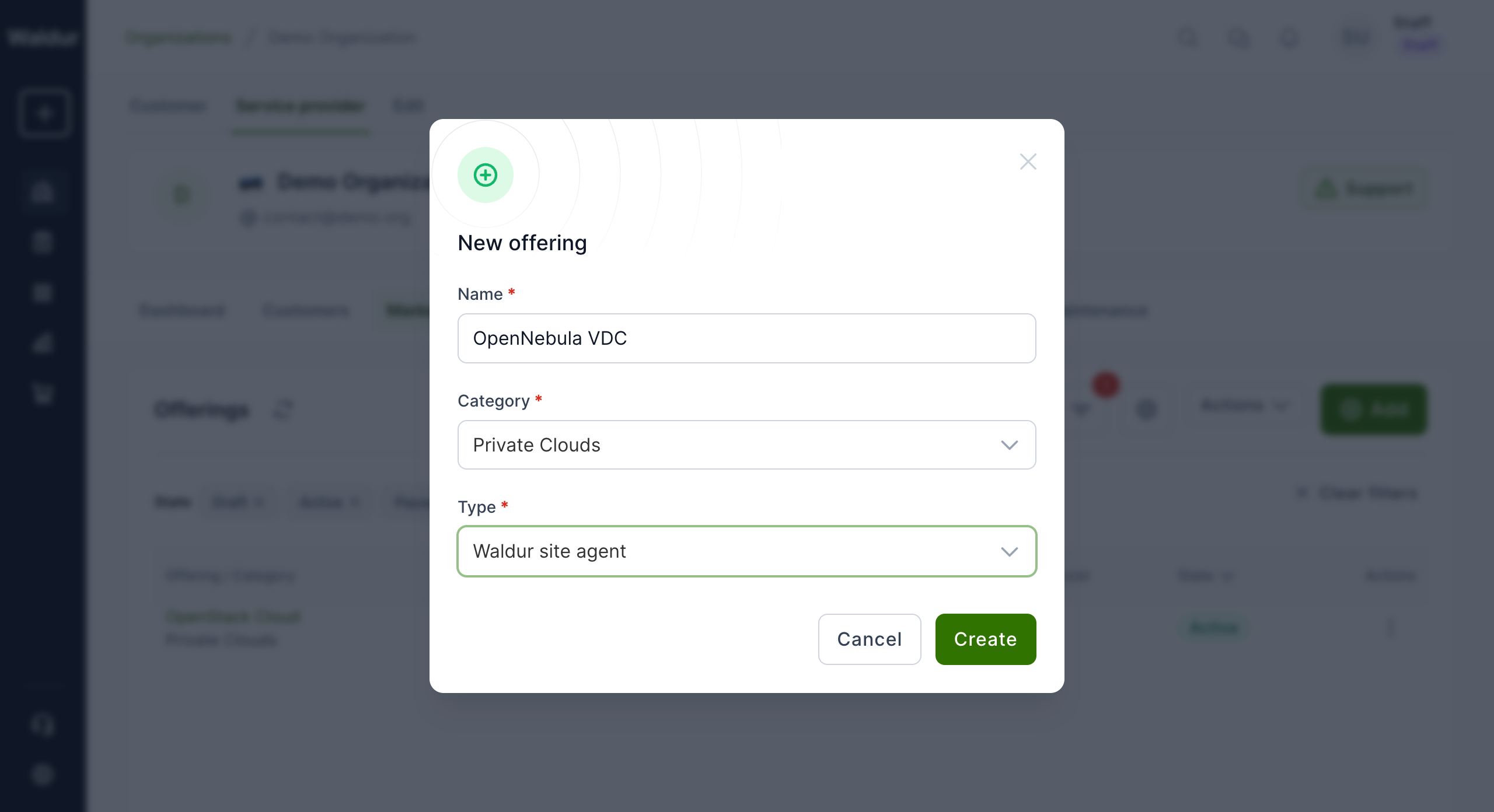

Create Offering New offering dialog with name, category, and type selected

4.3 Configure Offering Details

After creation, you'll be taken to the offering editor. The offering UUID shown in the URL is what you'll use in the site-agent config (waldur_offering_uuid).

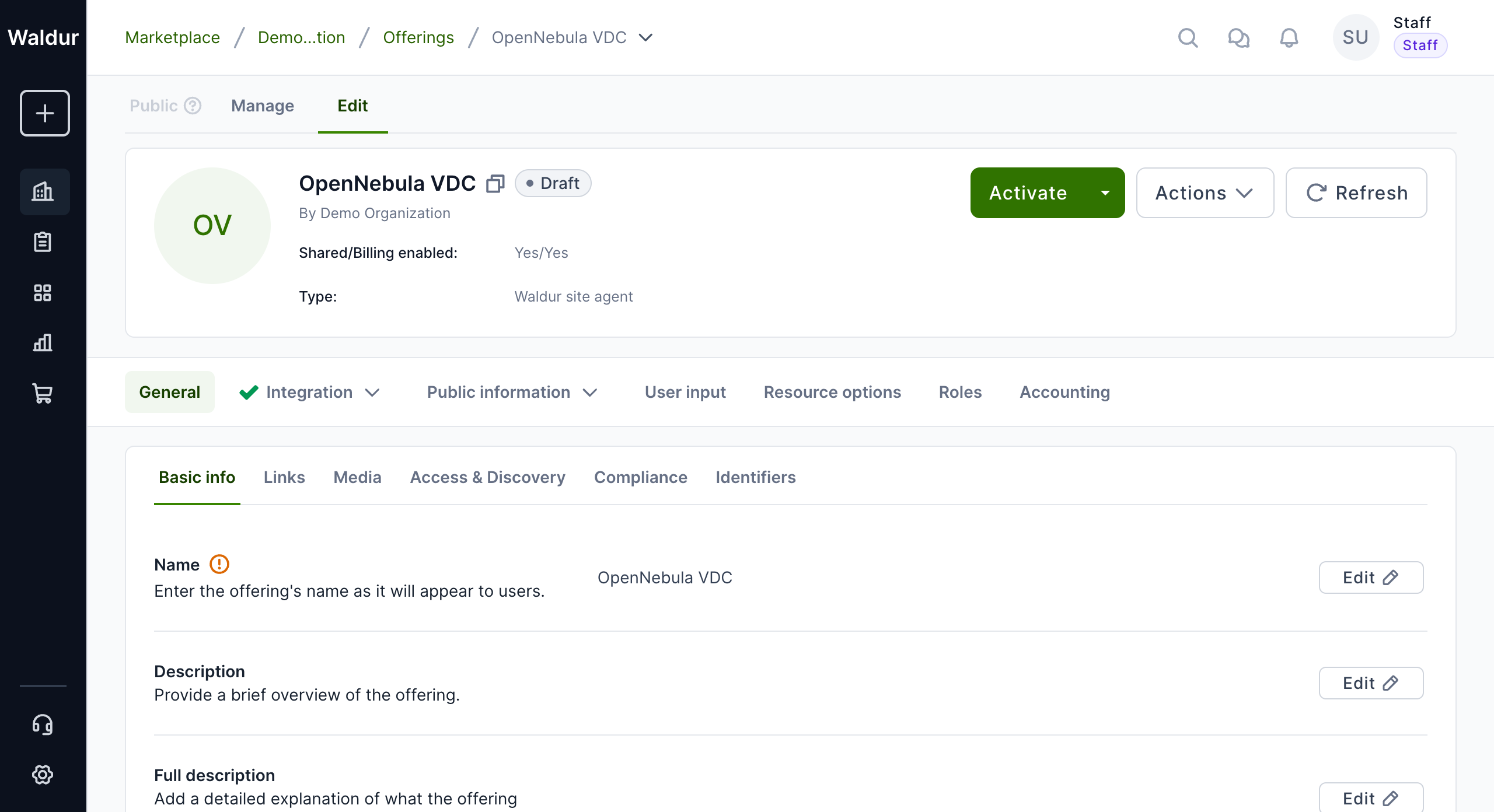

Offering Created Offering editor showing the newly created OpenNebula VDC offering in Draft state

4.4 Add the Sunstone Endpoint

Navigate to Public information > Endpoints and click Add endpoint. This endpoint will be displayed to users on the offering page, giving them a direct link to the OpenNebula Sunstone UI.

Field Value
Name OpenNebula Sunstone
URL https://lab-1910.opennebula.cloud (your Sunstone URL)

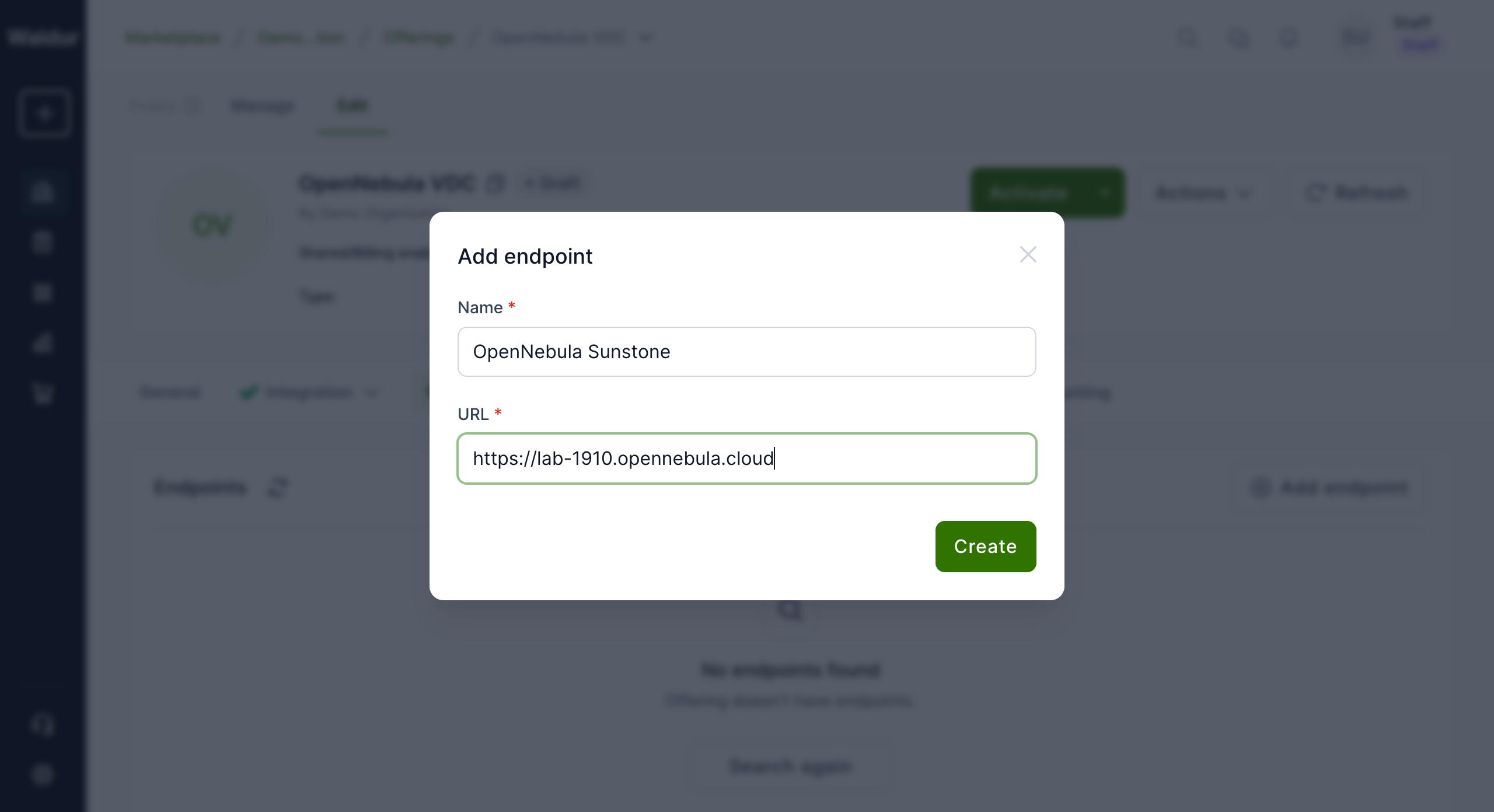

Add Endpoint Adding the Sunstone endpoint URL

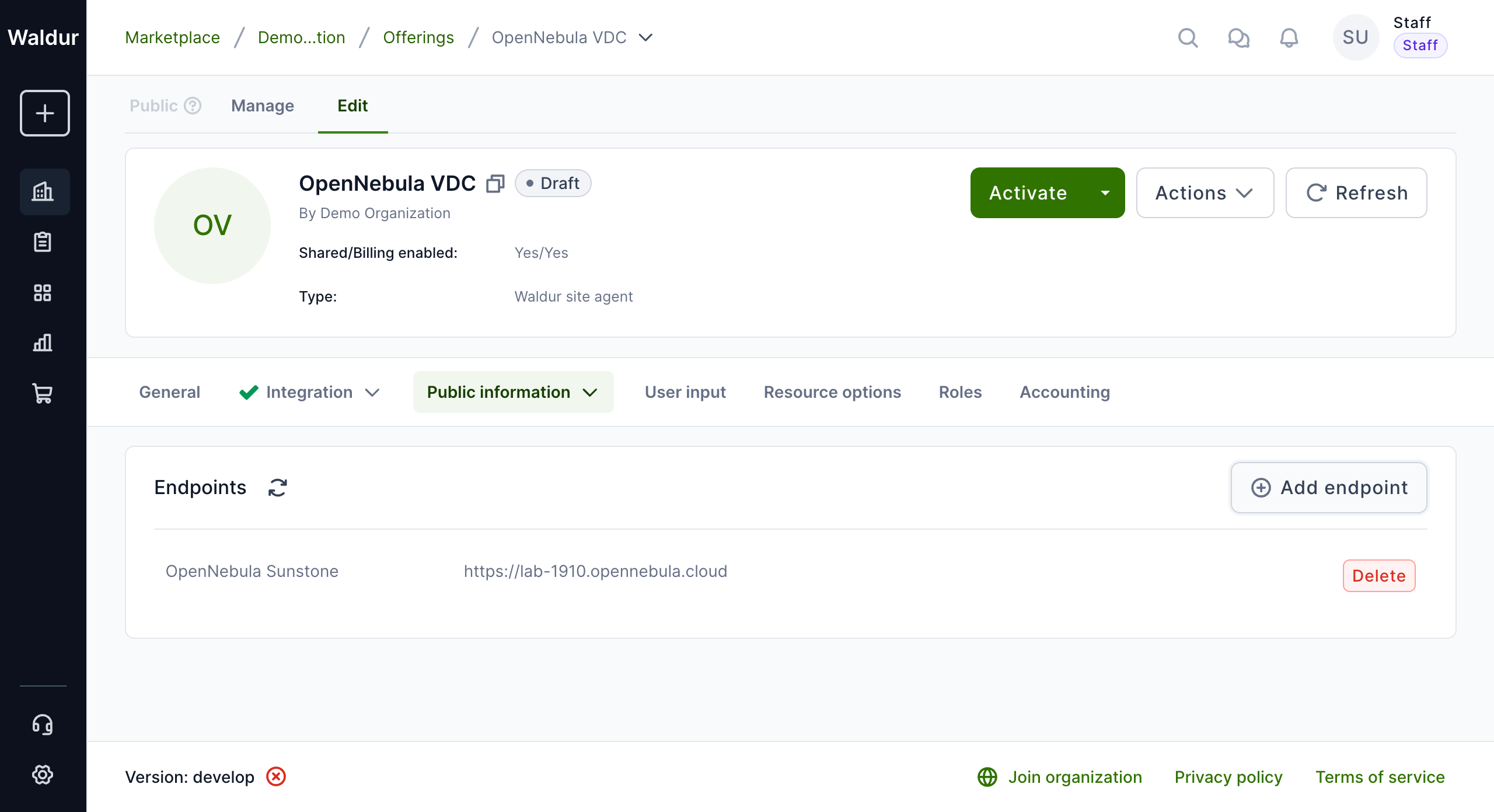

Endpoint Added Endpoint successfully added to the offering

4.5 Load Accounting Components from the Site Agent

Components (CPU, RAM, Storage) are defined in the site agent configuration under backend_components. Use waldur_site_load_components to push them into Waldur:

1
waldur_site_load_components -c opennebula-saml-agent-config.yaml

This creates the offering components with the correct types, units, and limits. Then create plans (e.g., Small VDC, Medium VDC) via the Accounting tab in the offering editor.

4.6 Activate the Offering

Once the offering is configured, click Activate to publish it to the marketplace. Users will then be able to order VDCs through the Waldur self-service portal.

Step 5: End-to-End Walkthrough

This section demonstrates the complete flow from ordering a VDC in Waldur to logging in to Sunstone.

5.1 Site Agent Configuration

Create a configuration file for the site agent that matches the offering created in Step 4. The key fields are waldur_offering_uuid (from the offering URL) and the keycloak settings.

See opennebula-saml-agent-config.yaml for the full example.

5.2 Order a VDC in the Marketplace

Navigate to Marketplace in Waldur and find the "OpenNebula VDC" offering. Click Add resource.

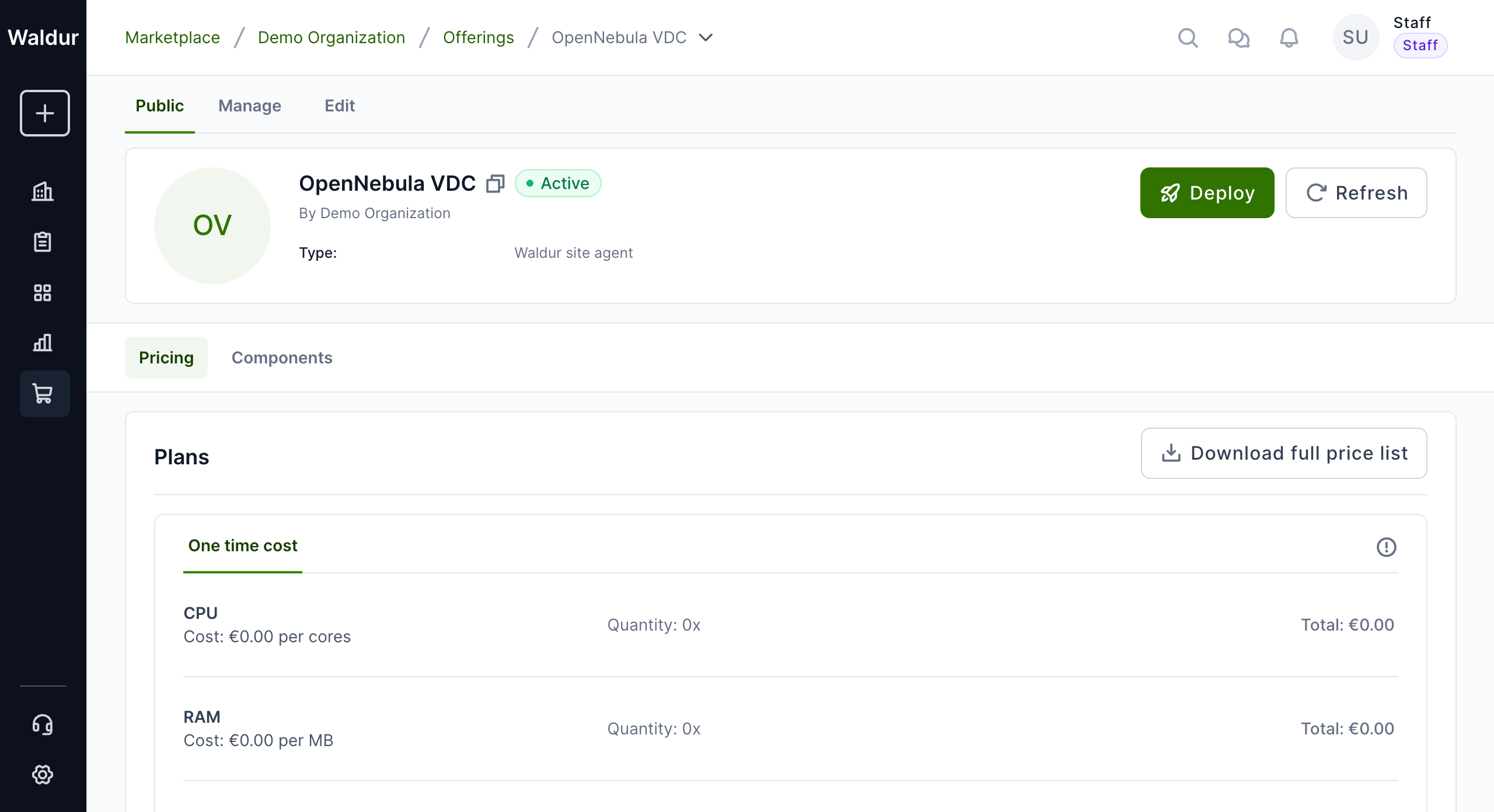

Marketplace OpenNebula VDC offering visible in the marketplace

Fill in the order form: - Organization: Select your organization - Project: Select or create a project (e.g., "OpenNebula SAML Demo") - Plan: Select a plan (e.g., "Small VDC") - Allocation name: Enter a name for the VDC (e.g., demo-saml-vdc)

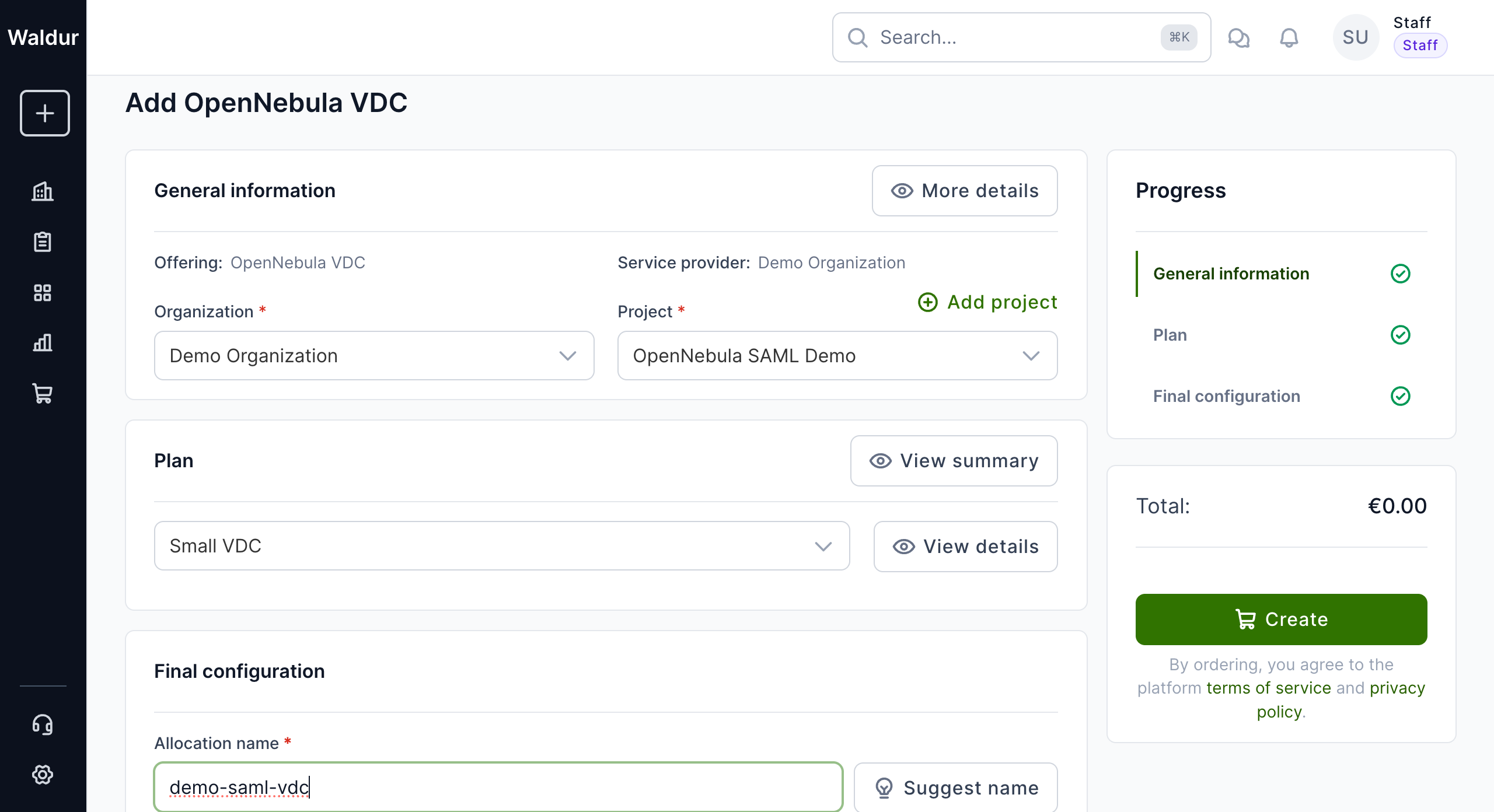

Order Form Order form with project, plan, and allocation name filled in

Click Create and confirm. The order will be placed in pending-provider state.

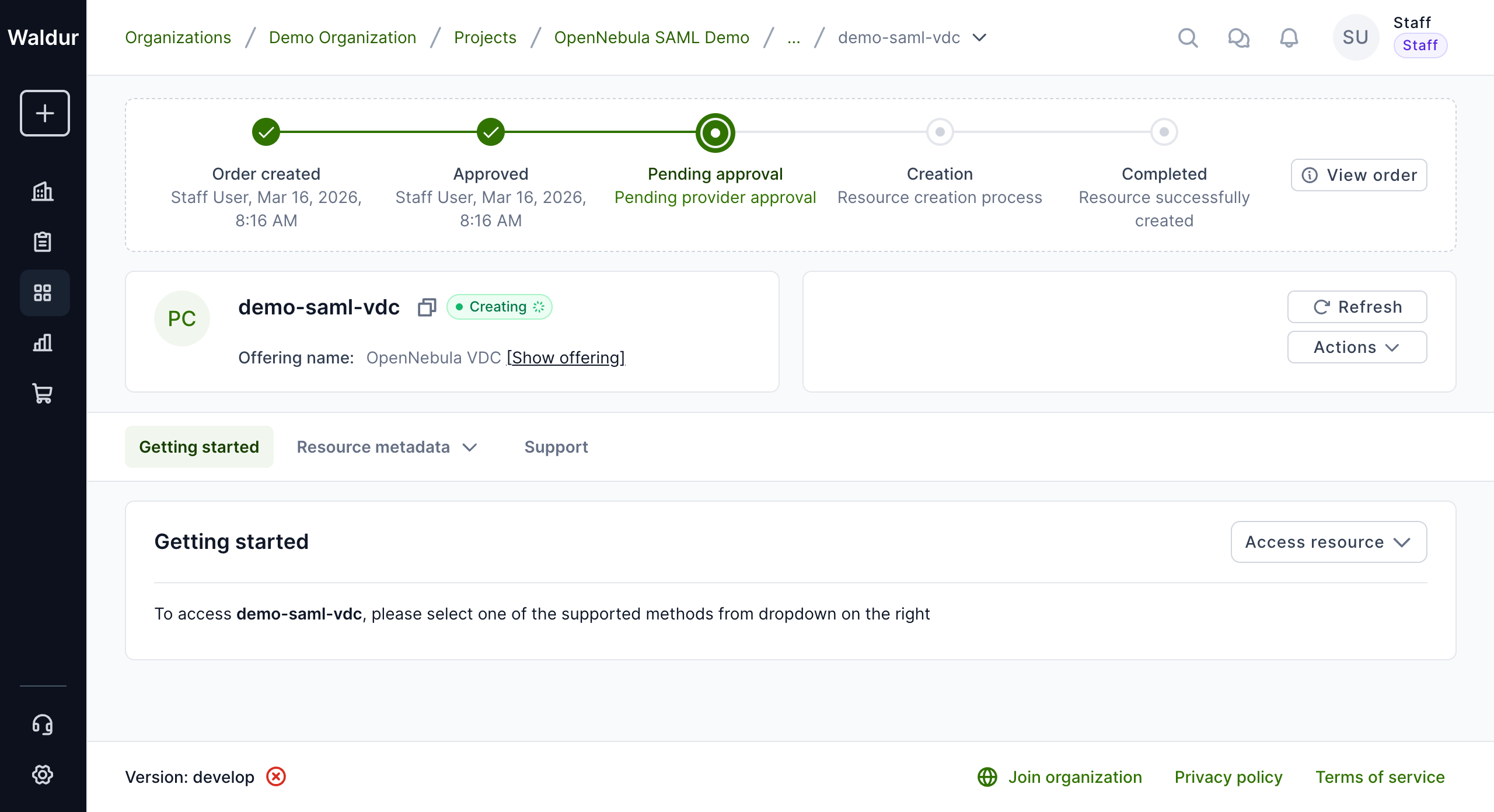

Order Submitted Order submitted and awaiting site agent processing

5.3 Process the Order with the Site Agent

Start the site agent (or let the polling loop run). The agent will:

  1. Poll Waldur for pending orders
  2. Approve the order
  3. Create the VDC + group in OpenNebula
  4. Create Keycloak groups (vdc_{name}/admin, vdc_{name}/user, vdc_{name}/cloud)
  5. Create ONE groups with SAML templates
  6. Update the SAML mapping file
  7. Set the backend ID and mark the order as done
1
2
3
4
5
# Process orders (creates VDCs, Keycloak groups, SAML mappings)
waldur_site_agent -m order_process -c opennebula-saml-agent-config.yaml

# Sync user memberships (adds/removes users from Keycloak groups)
waldur_site_agent -m membership_sync -c opennebula-saml-agent-config.yaml

Example output from a successful order processing run:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
INFO: Using opennebula-saml-agent-config.yaml as a config source
INFO: Waldur site agent version: 0.9.9
INFO: Running agent in order_process mode
INFO: Using opennebula backend (waldur-site-agent-opennebula, version 0.9.9)
INFO: Initialized Keycloak client for realm: opennebula
INFO: Keycloak integration enabled
INFO: Processing offering OpenNebula VDC (6a0a1626-...)
INFO: Processing order demo-saml-vdc (abde010d-...) type Create, state pending-provider
INFO: Approving the order
INFO: Creating resource demo-saml-vdc
INFO: Creating OpenNebula group 'demo-saml'
INFO: Creating OpenNebula VDC 'demo-saml'
INFO: Adding group 237 to VDC 194
INFO: Adding clusters (zone 0) to VDC 194
INFO: Created Keycloak parent group: vdc_demo-saml-vdc
INFO: Created Keycloak child group: vdc_demo-saml-vdc/admin
INFO: Created Keycloak child group: vdc_demo-saml-vdc/user
INFO: Created Keycloak child group: vdc_demo-saml-vdc/cloud
INFO: Created ONE group 'demo-saml-vdc-admins' (ID=238) with SAML mapping to /vdc_demo-saml-vdc/admin
INFO: Created ONE group 'demo-saml-vdc-users' (ID=239) with SAML mapping to /vdc_demo-saml-vdc/user
INFO: Created ONE group 'demo-saml-vdc-cloud' (ID=240) with SAML mapping to /vdc_demo-saml-vdc/cloud
INFO: Updated SAML mapping file with 3 entries
INFO: Resource backend id is set to demo-saml
INFO: Marking order as done
INFO: The order has been successfully processed

The resource appears in the project:

Resource Created VDC resource created and visible in the project

5.4 Add a Keycloak User to the Project

Add a user (who exists in Keycloak) to the Waldur project as a member. This can be done via the project's Team tab or via the API.

On the next membership sync cycle, the site agent will call add_user() which adds the user to the correct Keycloak group (vdc_{name}/user).

1
2
# Run membership sync (typically on a schedule or as a separate agent instance)
waldur_site_agent -m membership_sync -c opennebula-saml-agent-config.yaml

Example output from membership sync:

1
2
3
4
5
INFO: Processing offering OpenNebula VDC (6a0a1626-...)
INFO: Syncing user list for resource demo-saml-vdc
INFO: Adding user testuser1 to VDC demo-saml-vdc with role user
INFO: Added user 0f329cb6-... to group 2efcd37b-...
INFO: Added user testuser1 to Keycloak group vdc_demo-saml-vdc/user

5.5 Verify Sunstone Access

After the site agent syncs the membership, the user can log in to Sunstone via SAML. The group switcher will now show the new VDC alongside any existing ones.

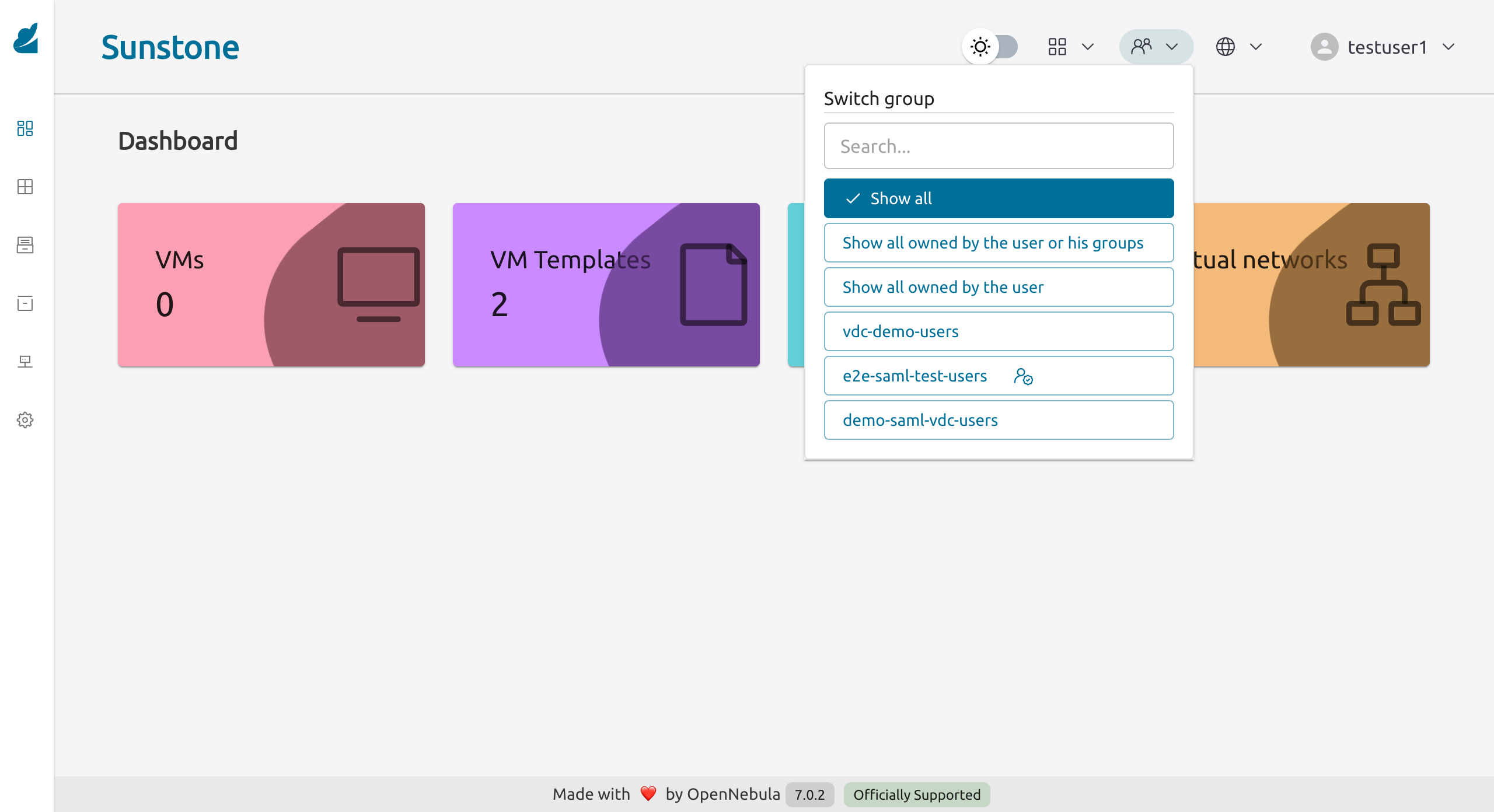

Three VDCs in Sunstone testuser1 can see three VDC groups after being added to a new project

Step 6: Verify the Integration

6.1 Sunstone Login Page

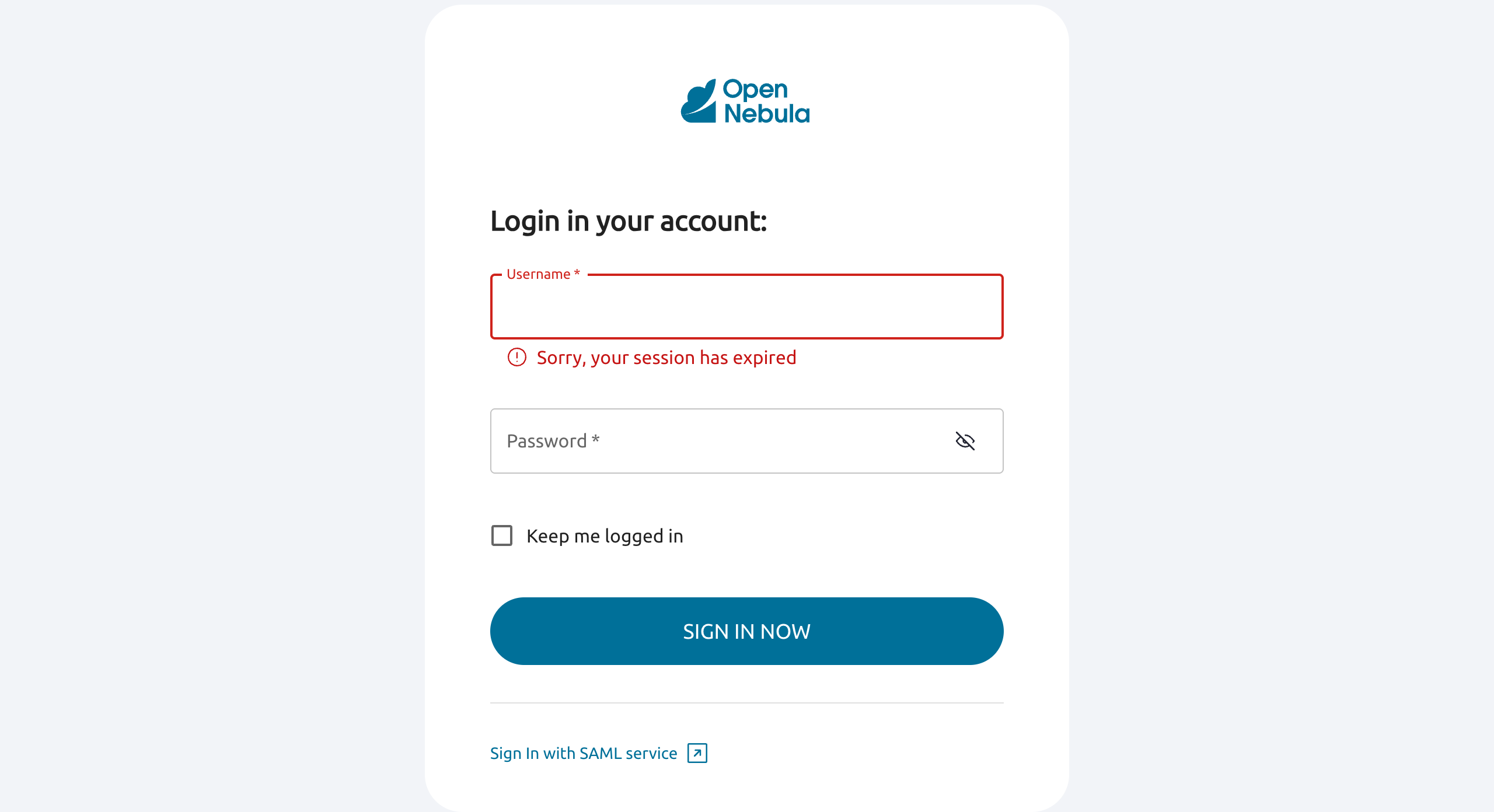

Navigate to Sunstone. The login page shows a "Sign In with SAML service" link at the bottom.

Sunstone Login

6.2 Keycloak SAML Login

Clicking the SAML link redirects to the Keycloak login page for the opennebula realm.

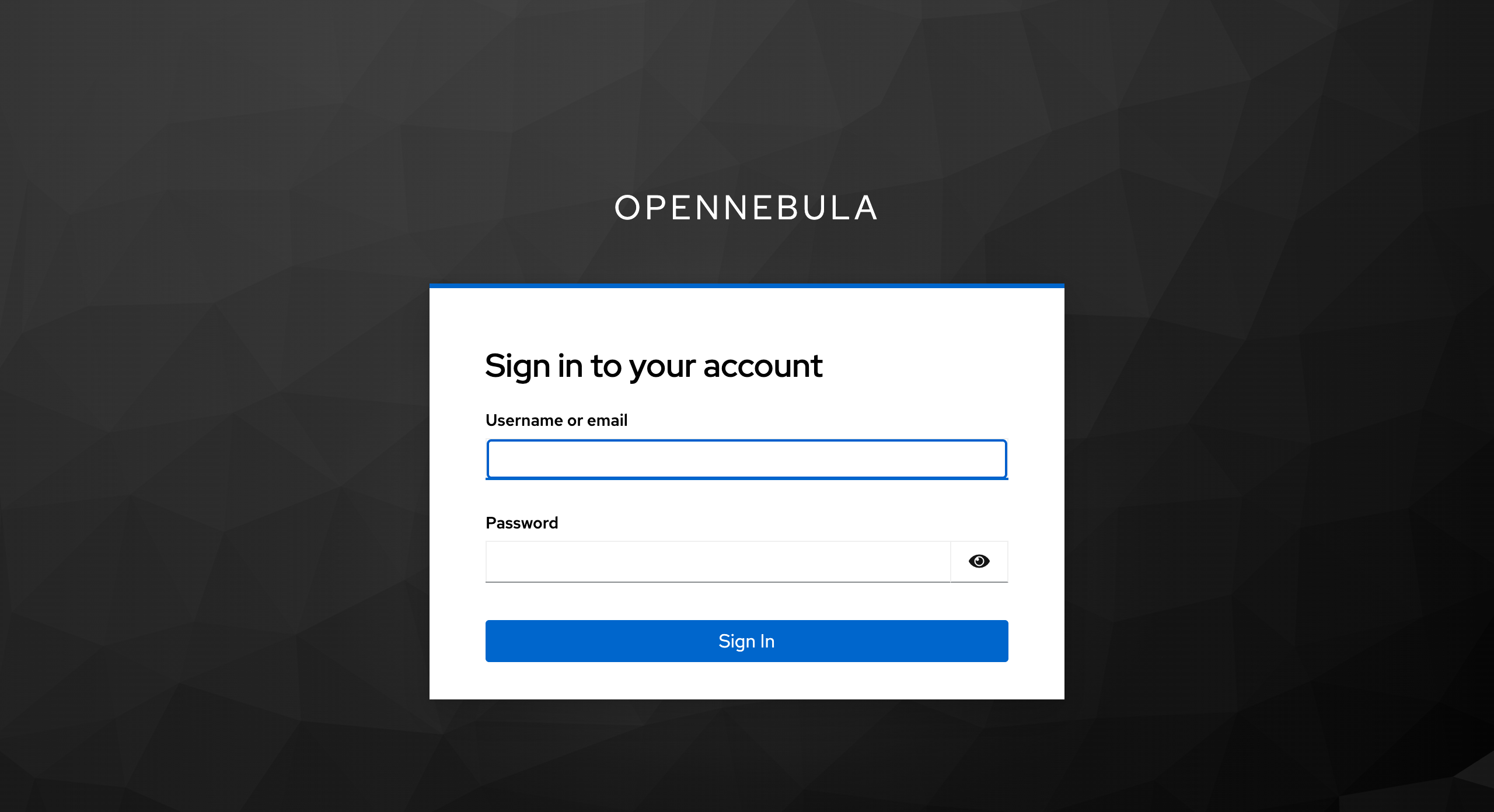

Keycloak SAML Login

6.3 Sunstone Dashboard

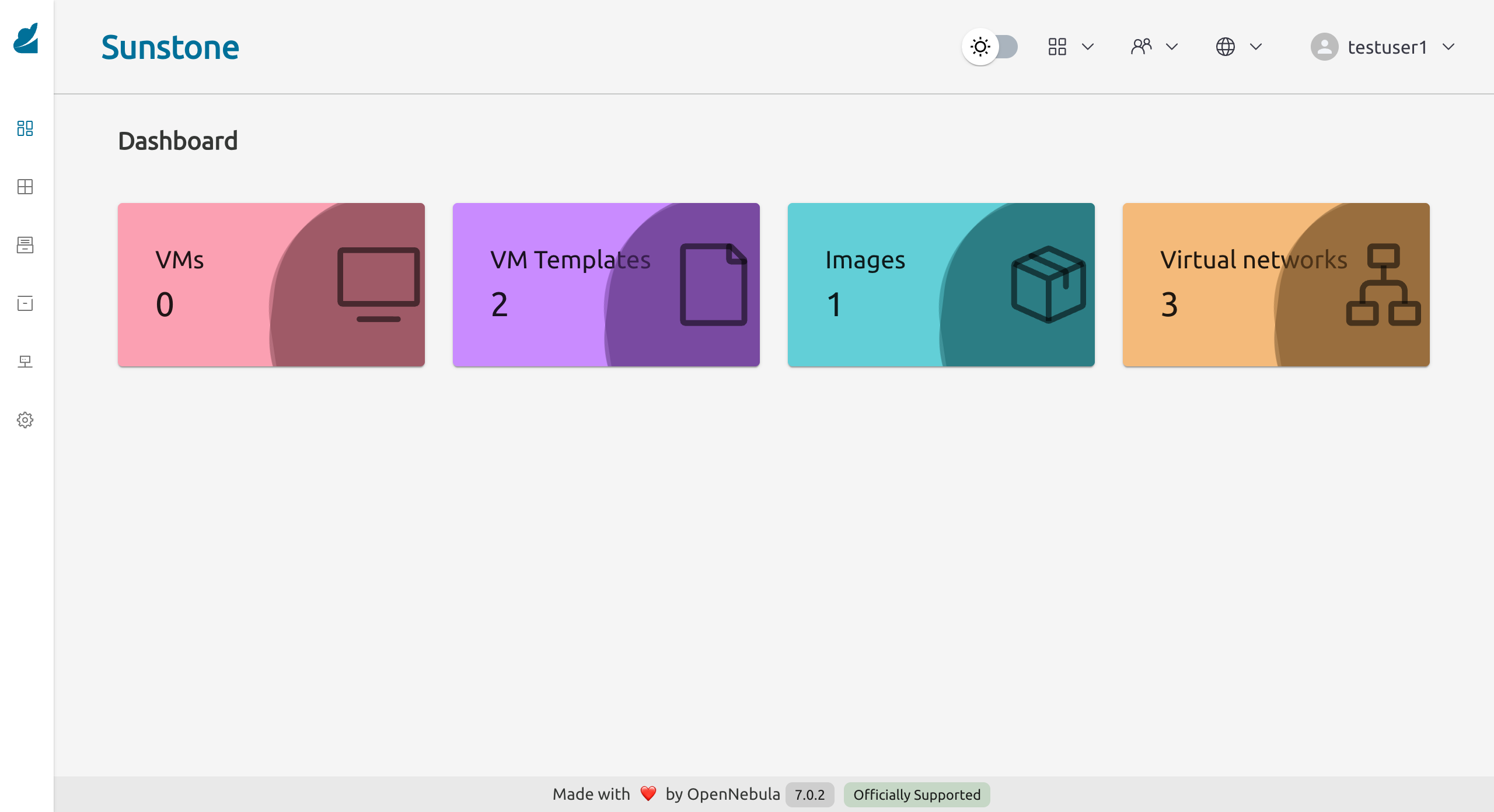

After successful SAML login, the user lands on the Sunstone dashboard with the correct FireEdge view matching their role.

Sunstone Dashboard

6.4 Group Switcher

Users assigned to multiple VDCs can switch between them using the group switcher in the top bar.

Group Switcher testuser1 can see both vdc-demo-users and e2e-saml-test-users groups

How It Works

VDC Creation

When the site-agent creates a VDC with keycloak_enabled: true:

  1. Creates the OpenNebula VDC, base group, and clusters (standard flow)
  2. Creates a Keycloak parent group vdc_{slug}
  3. Creates Keycloak child groups admin, user, cloud under the parent
  4. Creates OpenNebula groups {slug}-admins, {slug}-users, {slug}-cloud
  5. Sets SAML_GROUP and FIREEDGE template attributes on each ONE group
  6. Adds all ONE groups to the VDC
  7. Writes the mapping file (keycloak_groups.yaml) with KC group path -> ONE group ID entries

User Management

When a user is added to a Waldur project that has a VDC:

  1. Site-agent calls add_user(resource, username, role="user")
  2. Finds the user in Keycloak by username
  3. Adds the user to the vdc_{slug}/user Keycloak group
  4. On next SAML login, OpenNebula reads the SAML assertion's member attribute
  5. Matches the Keycloak group path against keycloak_groups.yaml
  6. Places the user in the corresponding ONE group with the correct FireEdge view

VDC Deletion

When a VDC is terminated:

  1. Deletes ONE SAML groups ({slug}-admins, {slug}-users, {slug}-cloud)
  2. Deletes Keycloak child groups, then parent group
  3. Removes entries from the mapping file
  4. Deletes the VDC and base group (standard flow)

SAML Mapping File Format

The mapping file is a YAML dictionary mapping Keycloak group paths to OpenNebula group IDs:

1
2
3
4
5
6
7
---
"/vdc_demo/admin": "202"
"/vdc_demo/user": "203"
"/vdc_demo/cloud": "204"
"/vdc_my-project/admin": "210"
"/vdc_my-project/user": "211"
"/vdc_my-project/cloud": "212"

The site-agent writes this file atomically (via temp file + rename) and merges new entries with existing ones.

Running Integration Tests

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
OPENNEBULA_INTEGRATION_TESTS=true \
OPENNEBULA_API_URL="http://<host>:2633/RPC2" \
OPENNEBULA_CREDENTIALS="oneadmin:<password>" \
OPENNEBULA_CLUSTER_IDS="0,100" \
KEYCLOAK_URL="https://<host>/keycloak/" \
KEYCLOAK_REALM="opennebula" \
KEYCLOAK_ADMIN_USERNAME="admin" \
KEYCLOAK_ADMIN_PASSWORD="<password>" \
KEYCLOAK_TEST_USERNAME="testuser1" \
uv run pytest plugins/opennebula/tests/test_saml_integration_e2e.py -v

The integration test suite (test_saml_integration_e2e.py) runs 21 ordered tests covering the full lifecycle:

# Test Verifies
01 Connectivity ONE + Keycloak reachable
02 Keycloak init Client created successfully
03 Create VDC VDC + KC groups + ONE groups created
04-06 KC groups Parent + 3 children exist
07-09 ONE groups SAML_GROUP template, FIREEDGE views, VDC membership
10 Mapping file Contains correct entries
11 Quotas VDC quotas set
12-13 Add user User in correct KC group (user + admin roles)
14 Remove user User removed from all role groups
15 User not found BackendError raised
16-20 Delete VDC Full cleanup (KC groups, ONE groups, mappings, VDC)
21 Idempotent Second create reuses existing groups

Troubleshooting

SAML login fails with "Invalid credentials"

  • Verify the user exists in the Keycloak opennebula realm (not master)
  • Check that the user has a password set

User doesn't see the correct VDC after login

  • Check that the user is in the correct Keycloak group (vdc_{slug}/{role})
  • Verify the mapping file on the ONE server contains the correct entries
  • Check that the ONE group has SAML_GROUP set: onegroup show <id>
  • The mapping_timeout in saml_auth.conf controls how often the mapping file is re-read (default 300s)

Keycloak client init fails with 401

  • The keycloak_user_realm must be set to master if the admin user is in the master realm
  • Verify admin credentials work: curl -X POST .../realms/master/protocol/openid-connect/token

Groups created but user not mapped

  • Ensure mapping_generate: false in saml_auth.conf
  • Ensure mapping_key: 'SAML_GROUP' matches the template attribute name
  • Ensure mapping_mode: 'keycloak' is set
  • Check that the SAML client has a "Group list" protocol mapper with attribute name member
